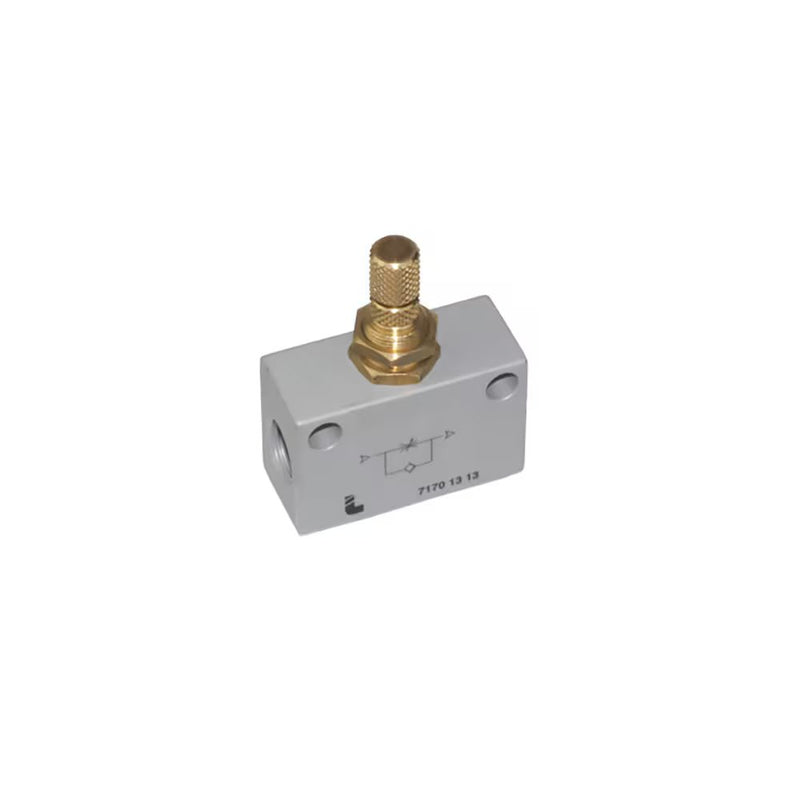

7170 13 13 by Parker | Legris Panel-Mountable In-Line Flow Regulator | 1/4" Female BSPP Thread | Straight | Aluminum

7170 13 13 by Parker | Legris Panel-Mountable In-Line Flow Regulator | 1/4" Female BSPP Thread | Straight | Aluminum

Save $17.66 Save $17.66
$44.15
$44.15 - $44.15
$44.15
$26.49
$26.49 - $26.49
$26.49

by Parker Hannifin
Flow Control Regulators:7170 Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread
Specifications for Variant SKU: 7170 13 13 Parker
Series: 7170 Series
Shape (Orientation): Straight
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C F H (max) H (min) H1 K L L1 ØT Kg
7170 10 10 1/8" 15 mm 56 mm 49 mm 22 mm 18 mm 35 mm 24.7 mm 4.5 mm .056 Kg
7170 13 13 1/4" 15 mm 64 mm 57 mm 30 mm 20 mm 46 mm 35 mm 6.5 mm .088 Kg
7170 17 17 3/8" 22 mm 73 mm 62 mm 30 mm 25 mm 50 mm 35 mm 6.5 mm .154 Kg
7170 21 21 1/2" 22 mm 83 mm 72 mm 40 mm 25 mm 60 mm 44 mm 6.5 mm .195 Kg
