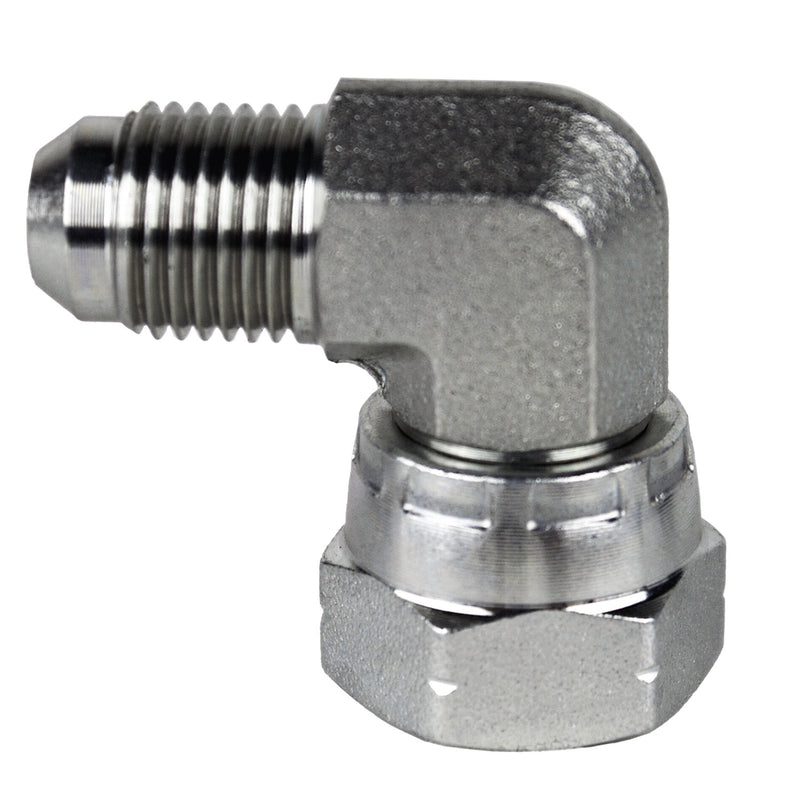

7204-08-06 by Midland | Hydraulic Adapter | 90° Elbow | 1/2" Male JIC x 3/8" Female BSPP Swivel | Steel

7204-08-06 by Midland | Hydraulic Adapter | 90° Elbow | 1/2" Male JIC x 3/8" Female BSPP Swivel | Steel

Save $2.19 Save $2.19
$5.47
$5.47 - $5.47
$5.47
$3.28
$3.28 - $3.28
$3.28

Midland Industries
Hydraulic Adapters: Male JIC to Female BSPP Swivel - 90° Elbow - Steel
Specifications for Variant SKU: 7204-08-06 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male JIC, 3/8in Female BSPP
Material(s): Steel
Special Properties: Swivel
Technical Info:
Part Number Male JIC Tube
Size
(1)		 Male JIC Tube
Thread
Size
(1)		 Female BSPP Swivel
Size
(2)		 Female BSPP Swivel
Thread
Size
(2)
7204-04-04 1/4" 7/16-20 1/4" 1/4-19
7204-06-06 3/8" 9/16-18 3/8" 3/8-19
7204-08-06 1/2" 3/4-16 3/8" 3/8-19
7204-08-08 1/2" 3/4-16 1/2" 1/2-14
7204-12-12 3/4" 1-1/16-12 3/4" 3/4-14
7204-16-16 1" 1-5/16-12 1" 1-11

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
