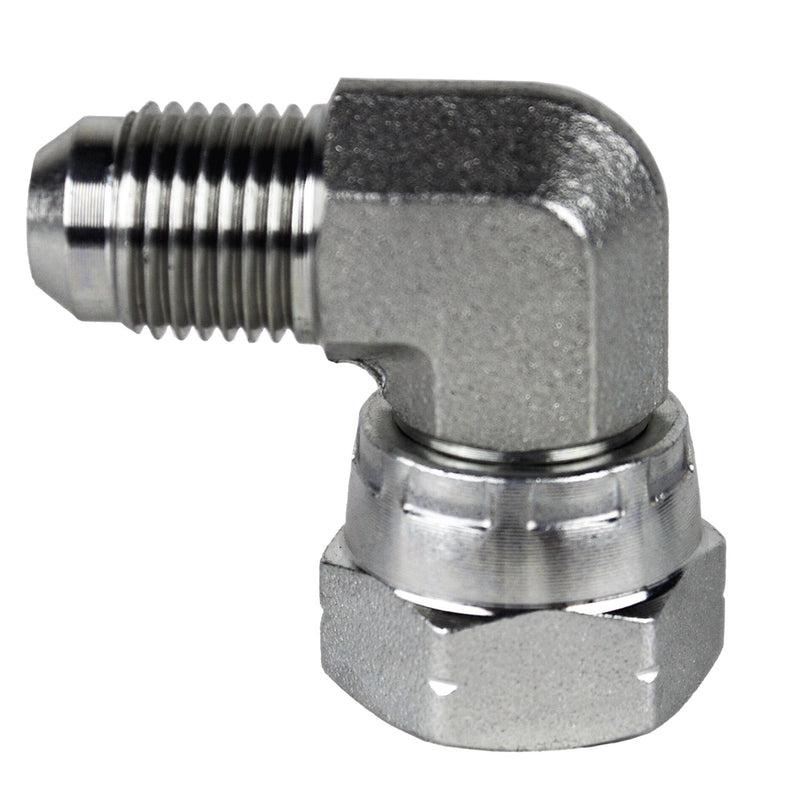

7204-16-16 by Midland | Hydraulic Adapter | 90° Elbow | 1" Male JIC x 1" Female BSPP Swivel | Steel

7204-16-16 by Midland | Hydraulic Adapter | 90° Elbow | 1" Male JIC x 1" Female BSPP Swivel | Steel

Save $7.21 Save $7.21
$18.02
$18.02 - $18.02
$18.02
$10.81
$10.81 - $10.81
$10.81

Midland Industries
Hydraulic Adapters: Male JIC to Female BSPP Swivel - 90° Elbow - Steel

Inventory @ Manufacturers Warehouse: 516 Units
Specifications for Variant SKU: 7204-16-16 Midland
Shape (Orientation): 90 Degree
Ends Configuration: 1in Male JIC, 1in Female BSPP
Material(s): Steel
Special Properties: Swivel
Technical Info:
Part Number Male JIC Tube
Size
(1)		 Male JIC Tube
Thread
Size
(1)		 Female BSPP Swivel
Size
(2)		 Female BSPP Swivel
Thread
Size
(2)
7204-04-04 1/4" 7/16-20 1/4" 1/4-19
7204-06-06 3/8" 9/16-18 3/8" 3/8-19
7204-08-06 1/2" 3/4-16 3/8" 3/8-19
7204-08-08 1/2" 3/4-16 1/2" 1/2-14
7204-12-12 3/4" 1-1/16-12 3/4" 3/4-14
7204-16-16 1" 1-5/16-12 1" 1-11
