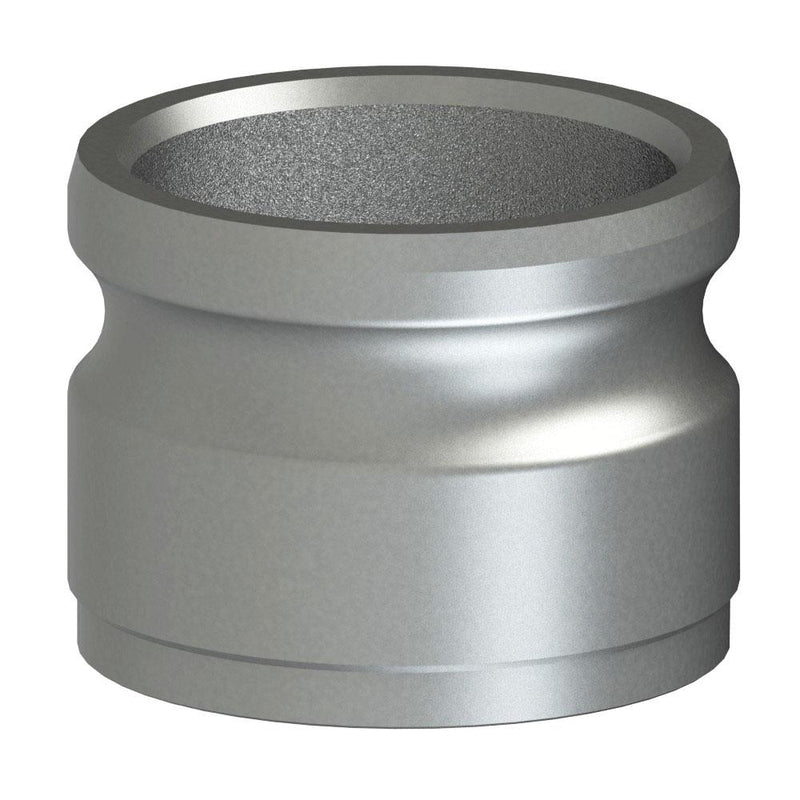

74603025 (30AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 3" Adapter x Butt Weld for Schedule 40 Pipe | Carbon Steel

74603025 (30AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 3" Adapter x Butt Weld for Schedule 40 Pipe | Carbon Steel

Save $82.22 Save $82.22
$221.53
$221.53 - $221.53
$221.53
$139.31
$139.31 - $139.31
$139.31

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 40 Pipe | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 74603025 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Male Cam & Groove, 3in Weld End
Material(s): Carbon Steel
Features & Applications:
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
30AWB 74603025 3" 2.75" 2.81" 200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
