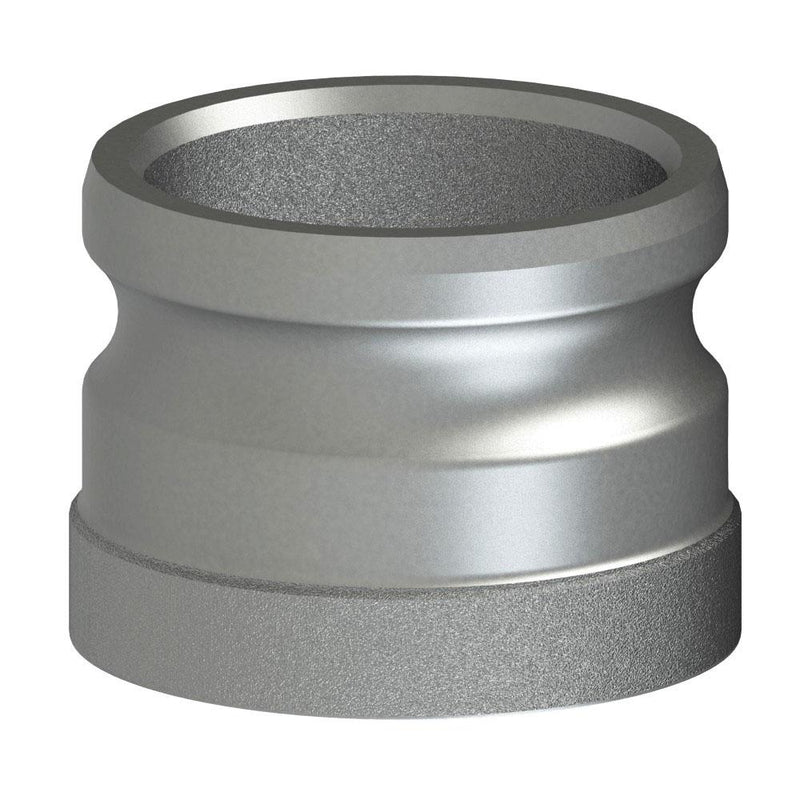

74604099 (40AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 4" Adapter x Socket Weld for Pipe | Carbon Steel

Name: 74604099 (40AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 4" Adapter x Socket Weld for Pipe | Carbon Steel
Brand: PT-Coupling
SKU: 74604099 PT-Coupling
Price: 92.97 USD
Availability: InStock

Save $54.90

$147.87

$147.87 - $147.87

$147.87

$92.97

$92.97 - $92.97

$92.97

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Pipe | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 74604099 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Male Cam & Groove, 4in Weld End
Material(s):	Carbon Steel

Features & Applications:
Made in the USA


Part Name	Item #	Size	Socket Depth (A)	Outside Diameter (B)	Inside Diameter (C)	Overall Length (D)	Socket Diameter (E)	Max. Allowable Working Press. (PSI)*
40AWS	74604099	4"	0.60"	5.01"	3.00"	2.97"	4.58"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
