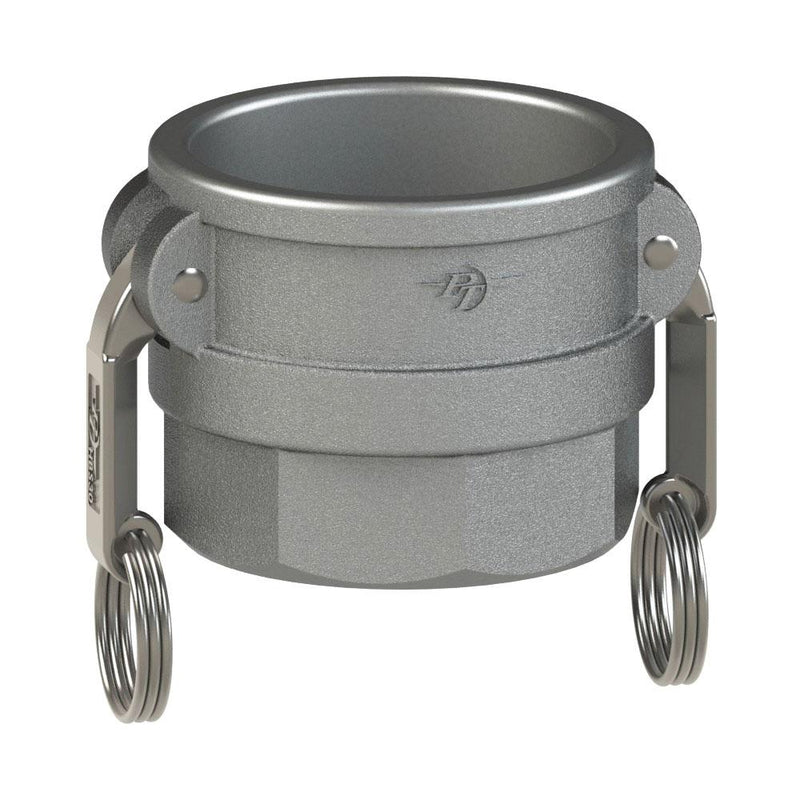

74624001 (40DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 4" Coupler x Socket Weld for Pipe | Carbon Steel

74624001 (40DWS) by PT-Coupling | Cam & Groove Adapter | Type DWS | 4" Coupler x Socket Weld for Pipe | Carbon Steel

Save $164.99 Save $164.99
$444.47
$444.47 - $444.47
$444.47
$279.48
$279.48 - $279.48
$279.48

PT Coupling
Cam & Groove (Camlock) Adapter | Type DWS | Coupler x Socket Weld for Pipe | Carbon Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 74624001 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 4in Female Cam & Groove, 4in Weld End
Material(s): Carbon Steel
Features & Applications:
  • Made in the USA
Part
Name		 Item # Size O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Depth
(E)		 Socket
Diameter
(F)		 Max. Allowable
Working Press.
(PSI)*
40DWS 74624001 4" 10.66" 6.56" 3.60" 3.90" .70" 4.58" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
