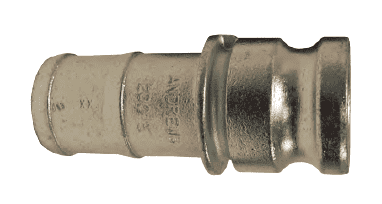

75-E-PM by Dixon Valve | Cam & Groove Fitting | Type E | 3/4" Adapter x 3/4" Hose Shank | Plated Malleable Iron

Save $2.03 Save $2.03
Original price $24.18
Original price $24.18 - Original price $24.18
Original price $24.18
Current price $22.15
$22.15 - $22.15
Current price $22.15

Dixon / Boss-Lock Type E Adapters - Male Adapter x Hose Shank - Plated Iron

Specifications for Variant SKU: 75-E-PM Dixon
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 3/4in Male Cam & Groove, 3/4in Hose Barb
Material(s): Plated Iron
Features:
  • Pressure rating is based on the seal of the mating part.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Produced to Commercial Item Description A-A-59326D.
Part Number Size Max PSI Weight (Lbs.)
75-E-PM 3/4" 250 (17.01 bar) 0.3800
100-E-PM 1" 250 (17.01 bar) 0.6300
125-E-PM 1-1/4" 250 (17.01 bar) 0.9350
150-E-PM 1-1/2" 250 (17.01 bar) 1.2750
200-E-PM 2" 250 (17.01 bar) 1.9750
300-E-PM 3" 125 (8.50 bar) 3.6700
400-E-PM* 4" 100 (6.80 bar) 6.0200
600-E-PM* 6" 75 (5.10 bar) 14.6800

* Suitable for King Crimp sleeves and ferrules

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
