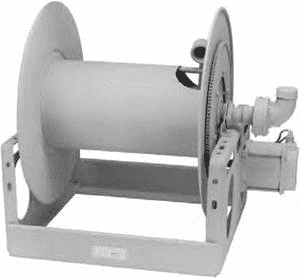

EP-7526-33-34 by Hannay | 7500 Series | Electric Powered Rewind Reel | 12 Volt DC

$1,647.33



7500 Electric Powered Rewind Reels To handle single 1" through 1-1/2" I.D. hose.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: EP-7526-33-34 Hannay
Series: 7500 Series
Applications:
  • Fuel Dispensing
  • Bulk Transfer
  • Suction/Discharge
Features:
  • Heavy-duty reel designed for longer lengths.
  • Chain and sprocket drive powered by an electric motor.
  • Power rewind reels with a comet brake.
  • Standard inlet 90 deg. ball bearing swivel joint 1-1/2" female NPT threads and 2" victaulic groove.
  • Standard outlet flanged riser 1-1/2" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Operate at pressures to 600 psi (41 bar).
  • Temperatures from -60 deg. F to +175 deg. F (-51 deg. C to +79 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1" 1-1/4" 1-1/2"
O.D. (in) 1-9/16" 1-13/16" 2-1/16" A B D E F Crank F Power G H X Y
EP-7528-19-21 85' lengths 70' lengths 50' lengths 144 lbs. 25.5" 20" 20.5" 18.75" 32" 33" 21.5" 12.12" 17.5" 16.75"
EP-7538-23-24 200' lengths 190' lengths 100' lengths 170 lbs. 35" 29.5" 20.5" 22.75" 41.5" 42.5" 23.5" 12.12" 27" 16.75"
EP-7520-25-26 115' lengths 75' lengths 50' lengths 146 lbs. 17" 11.5" 25.5" 24.75" 23.5" 24.5" 27.88" 15.5" 9" 21.75"
EP-7528-25-26 200' lengths 135' lengths 100' lengths 163 lbs. 25.5" 20" 25.5" 24.75" 32" 33" 27.88" 15.5" 17.5" 21.75"
EP-7522-30-31 190' lengths 160' lengths 100' lengths 158 lbs. 19" 13.5" 25.5" 28.75" 25.5" 26.5" 29.88" 15.5" 11" 21.75"
EP-7528-30-31 285' lengths 260' lengths 160' lengths 171 lbs. 25.5" 20" 25.5" 28.75" 32" 33" 29.88" 15.5" 17.5" 21.75"
EP-7526-33-34 335' lengths 200' lengths 200' lengths 173 lbs. 22.5" 17.5" 31.5" 31.75" 29.25" 30.25" 33.62" 17.75" 15" 27.75"

† Some applications require a clutch/reduction unit.
