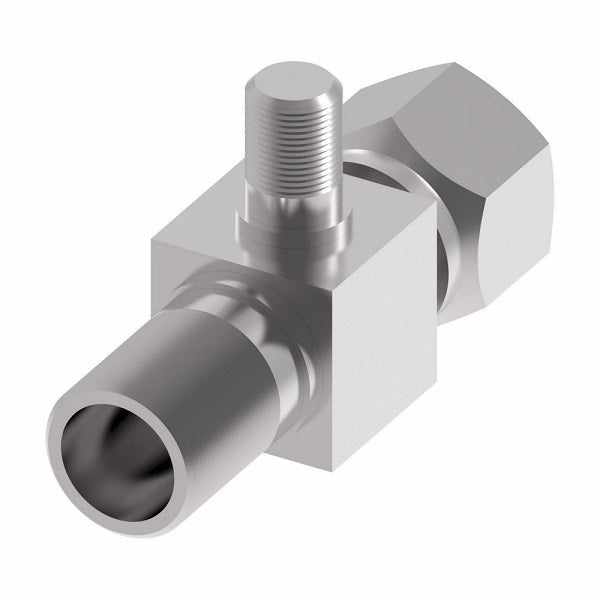

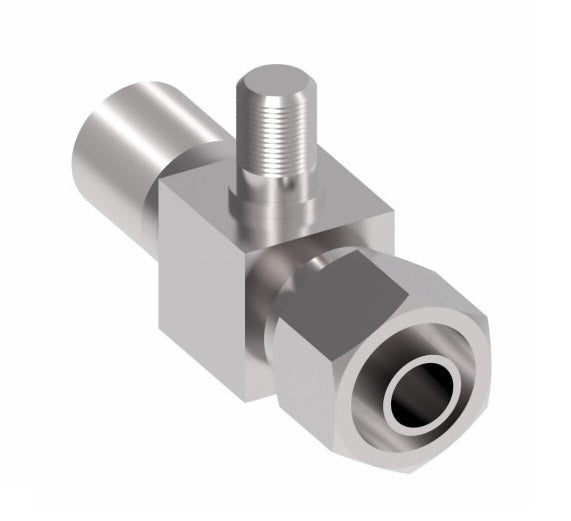

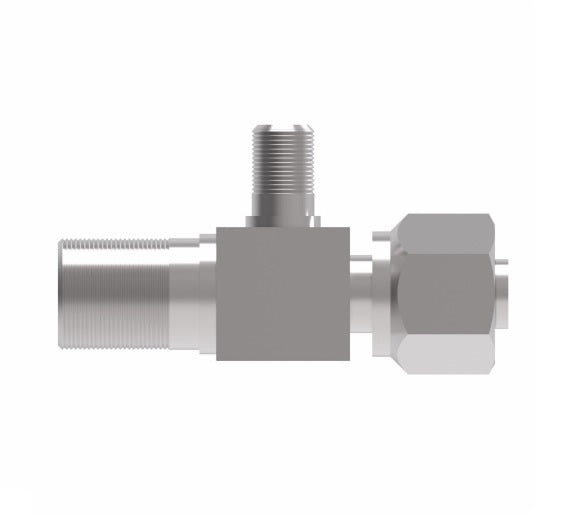

75701 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 3/8" Tube Size | Steel
75701 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 3/8" Tube Size | Steel
75701 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 3/8" Tube Size | Steel
75701 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 3/8" Tube Size | Steel

75701 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 3/8" Tube Size | Steel

$40.65 - $40.65
$40.65
$40.65 - $40.65
$40.65

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R134a Service Port
Specifications for Variant SKU: 75701 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube
A		 Thread Size Port Length
A		 Across Flats Hex
F
75701 3/8" 5/8-18 High Side Port 2.02" 5/8" 3/4"
75702 1/2" 3/4-16 High Side Port 2.22" 7/8" 7/8"
75704 5/8" 7/8-14 Low Side Port 2.63" 7/8" 1-1/16"
75706 3/4" 1-1/16-14 Low Side Port 2.89" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.
