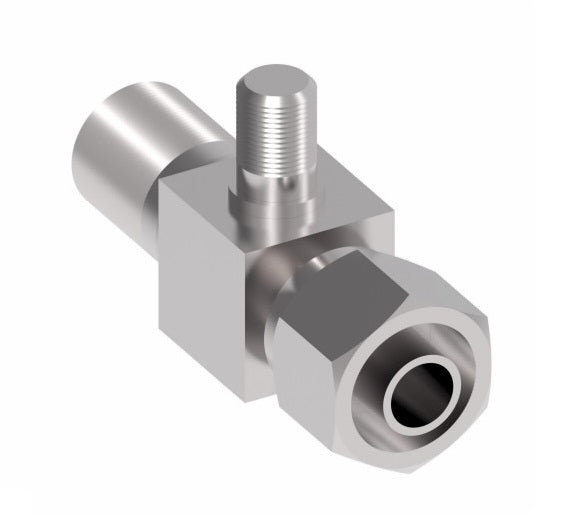

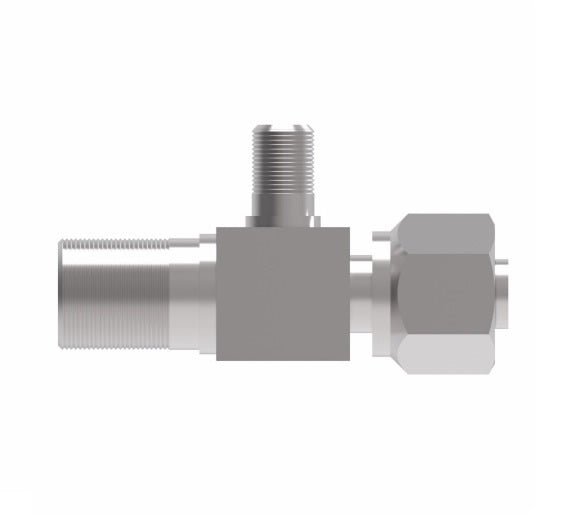

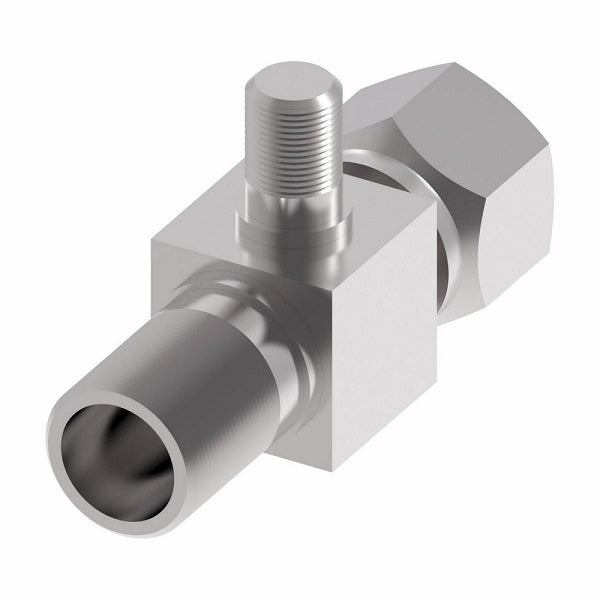

75706 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a Low Service Port | 3/4" Tube Size | Steel

75706 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a Low Service Port | 3/4" Tube Size | Steel

Name: 75706 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a Low Service Port | 3/4" Tube Size | Steel
Brand: Danfoss/Eaton
SKU: 75706 Danfoss
Price: 48.25 USD
Availability: InStock

$48.25 - $48.25

$48.25

$48.25 - $48.25

$48.25

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R134a Service Port

Specifications for Variant SKU: 75706 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Tube A	Thread Size	Port	Length A	Across Flats	Hex F
75702	1/2"	3/4-16	High Side Port	2.22"	7/8"	7/8"
75704	5/8"	7/8-14	Low Side Port	2.63"	7/8"	1-1/16"
75706	3/4"	1-1/16-14	Low Side Port	2.89"	1-1/16"	1-1/4"

Note: Drawings may differ from actual parts.
