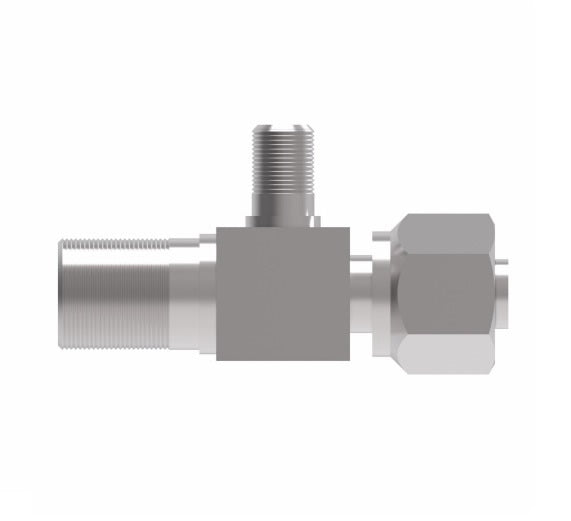

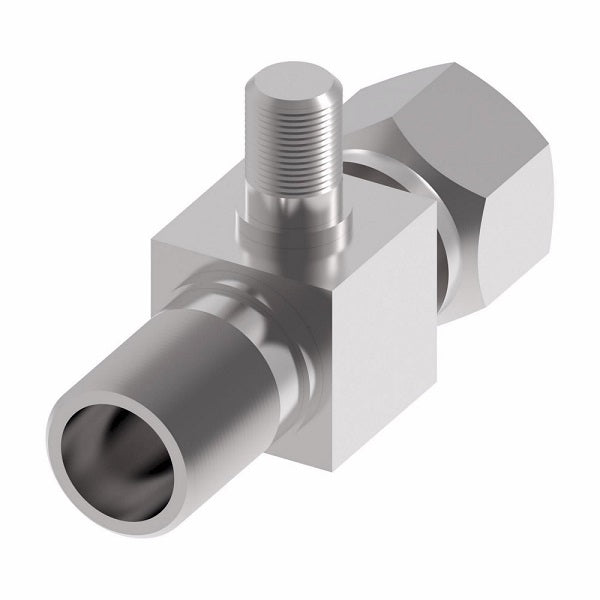

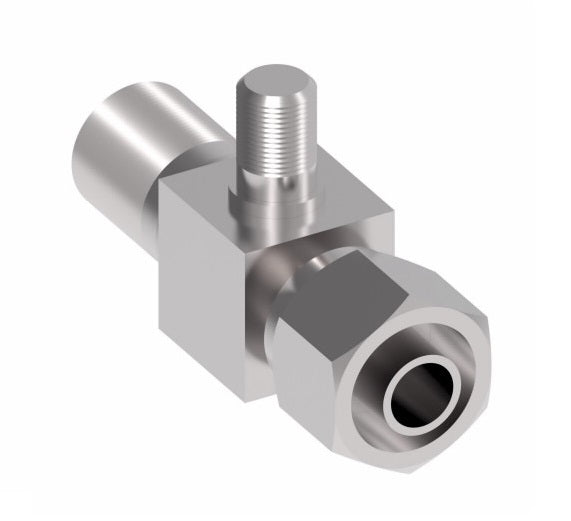

75702 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 1/2" Tube Size | Steel
75702 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 1/2" Tube Size | Steel
75702 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 1/2" Tube Size | Steel
75702 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 1/2" Tube Size | Steel

75702 Weatherhead by Danfoss | 757 'E' Series | Bumped Tube O-Ring Service Port Adapter with R134a High Service Port | 1/2" Tube Size | Steel

$50.72 - $50.72
$50.72
$50.72 - $50.72
$50.72

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Bumped Tube O-Ring Service Port Adapter with R134a Service Port
Specifications for Variant SKU: 75702 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube
A		 Thread Size Port Length
A		 Across Flats Hex
F
75702 1/2" 3/4-16 High Side Port 2.22" 7/8" 7/8"
75704 5/8" 7/8-14 Low Side Port 2.63" 7/8" 1-1/16"
75706 3/4" 1-1/16-14 Low Side Port 2.89" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
