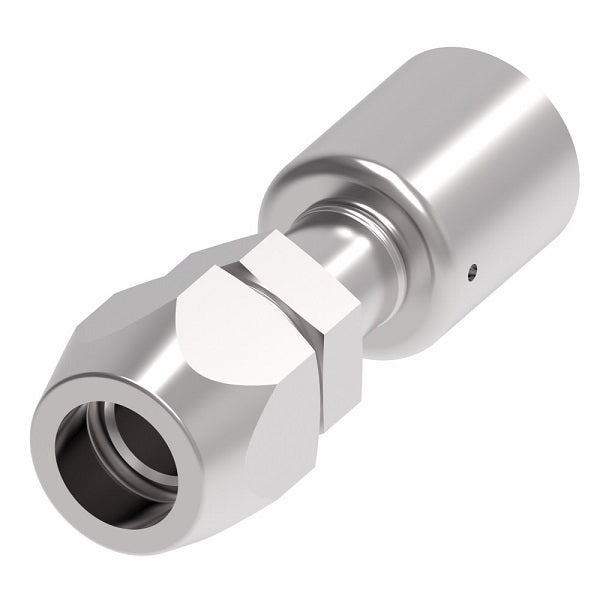

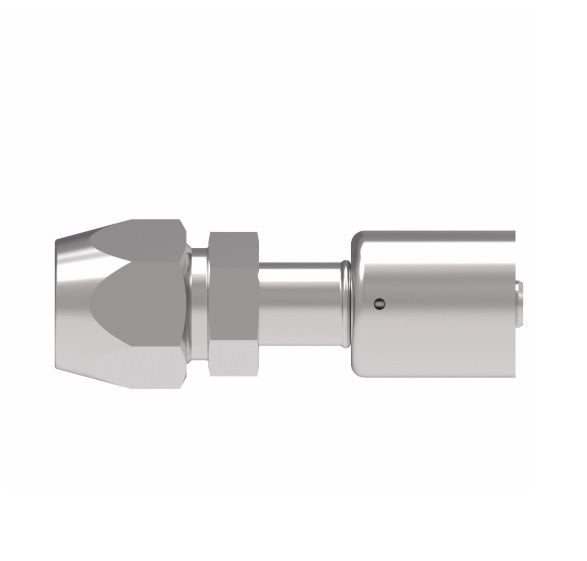

75708E-758 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -08 Compression x -08 Hose Barb | Steel
75708E-758 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -08 Compression x -08 Hose Barb | Steel
75708E-758 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -08 Compression x -08 Hose Barb | Steel
75708E-758 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -08 Compression x -08 Hose Barb | Steel

75708E-758 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -08 Compression x -08 Hose Barb | Steel

$29.88 - $29.88
$29.88
$29.88 - $29.88
$29.88

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Rigid Compression (with Nut and Sleeve) - Straight
Specifications for Variant SKU: 75708E-758 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Hose Cut-Off
Factor		 Hex
F		 Hex G
75706E-Z06 5/16" 3/8" 5/8-18 2.59" 1.38" 5/8" 3/4"
75706E-758 5/16" 1/2" 3/4-16 2.71" 1.50" 3/4" 7/8"
75708E-756 13/32" 3/8" 5/8-18 2.65" 1.38" 5/8" 3/4"
75708E-758 13/32" 1/2" 3/4-16 2.78" 1.50" 3/4" 7/8"
75708E-760 13/32" 5/8" 7/8-14 2.90" 1.63" 7/8" 1-1/16"
75710E-758 1/2" 1/2" 3/4-16 2.84" 1.63" 3/4" 7/8"
75710E-760 1/2" 5/8" 7/8-14 2.90" 1.63" 7/8" 1-1/16"
75712E-760 5/8" 5/8" 7/8-14 3.13" 1.75" 7/8" 1-1/16"
75712E-762 5/8" 3/4" 1-1/16-14 3.25" 1.88" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
