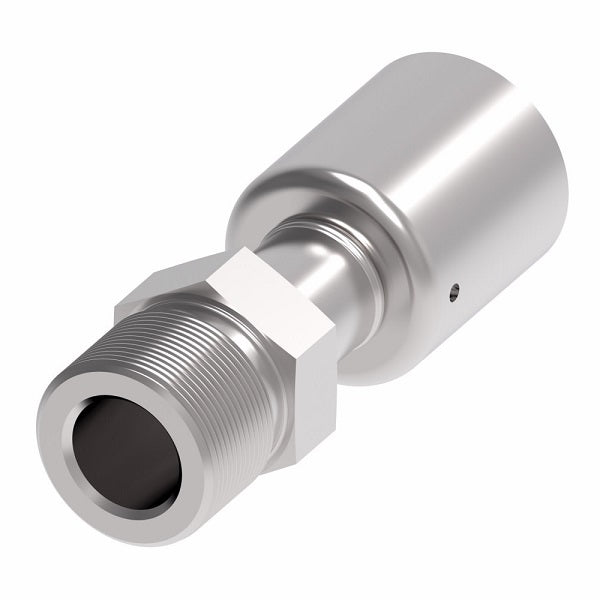

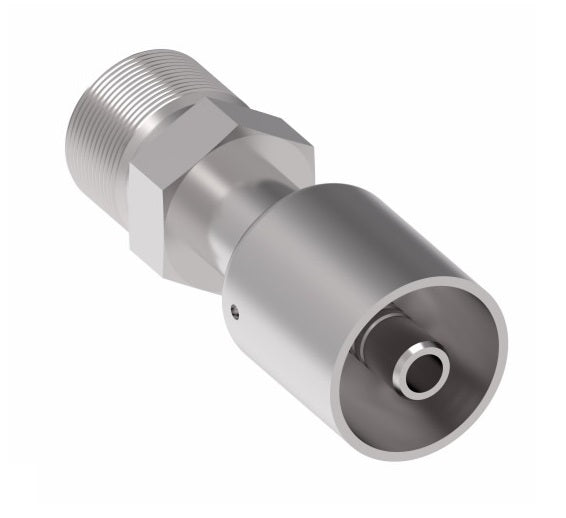

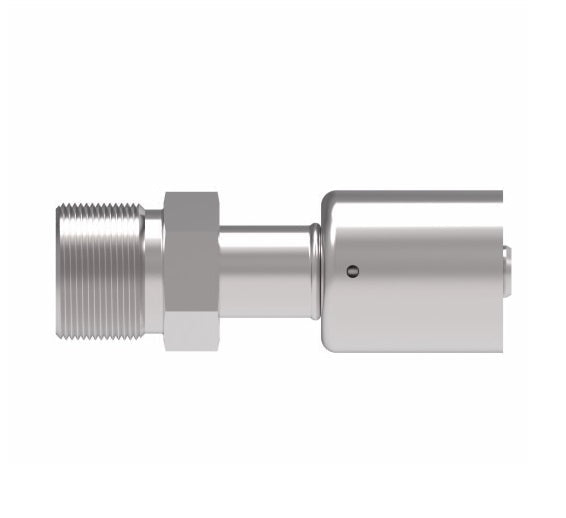

75708E-W08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Crimp Fitting | -08 Male Bumped Tube O-Ring x -08 Hose Barb | Steel

75708E-W08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Crimp Fitting | -08 Male Bumped Tube O-Ring x -08 Hose Barb | Steel

Name: 75708E-W08 Weatherhead by Danfoss | 757 'E' Series | Male Bumped Tube O-Ring Rigid Crimp Fitting | -08 Male Bumped Tube O-Ring x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75708E-W08 Danfoss
Price: 21.95 USD
Availability: InStock

$21.95 - $21.95

$21.95

$21.95 - $21.95

$21.95

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Bumped Tube O-Ring Rigid - Straight

Quantity

Specifications for Variant SKU: 75708E-W08 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Hose Cut-Off Factor	Hex F
75706E-W06	5/16"	3/8"	5/8-18	2.94"	1.54"	1.63"	5/8"
75708E-W08	13/32"	1/2"	3/4-16	3.26"	1.86"	2.00"	3/4"
75710E-W10	1/2"	5/8"	7/8-14	3.35"	1.95"	2.13"	7/8"
75712E-W10	5/8"	5/8"	7/8-14	3.56"	2.06"	2.25"	7/8"

Note: Drawings may differ from actual parts.
