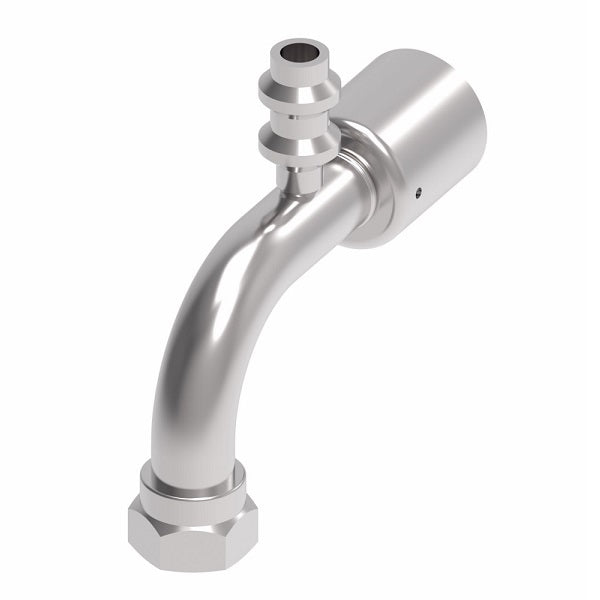

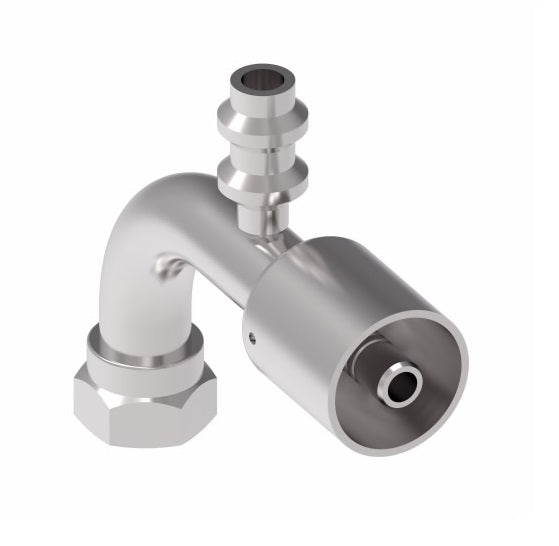

75708E-Z99 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z99 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z99 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
75708E-Z99 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75708E-Z99 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a High Service Port Crimp Fitting | -08 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

$35.18 - $35.18
$35.18
$35.18 - $35.18
$35.18

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube with R134a Service Port - 90° Elbow
Specifications for Variant SKU: 75708E-Z99 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Port A Thread Size Run
R		 Drop
B		 Hose Cut-Off
Factor		 Hex
F		 Length
L
75706E-Z97 5/16" 3/8" High Side Port 2.52" 5/8-18 2.12" 1.12" 2.75" 3/4" 1.50"
75708E-Z99 13/32" 1/2" High Side Port 4.15" 3/4-16 2.75" 1.68" 2.88" 7/8" 1.50"
75710E-Z01 1/2" 5/8" Low Side Port 3.78" 7/8-14 2.38" 1.50" 3.00" 1-1/16" 1.50"
75712E-Z01 5/8" 5/8" Low Side Port 4.61" 7/8-14 3.11" 1.95" 3.00" 1-1/16" 1.50"

Note: Drawings may differ from actual parts.
