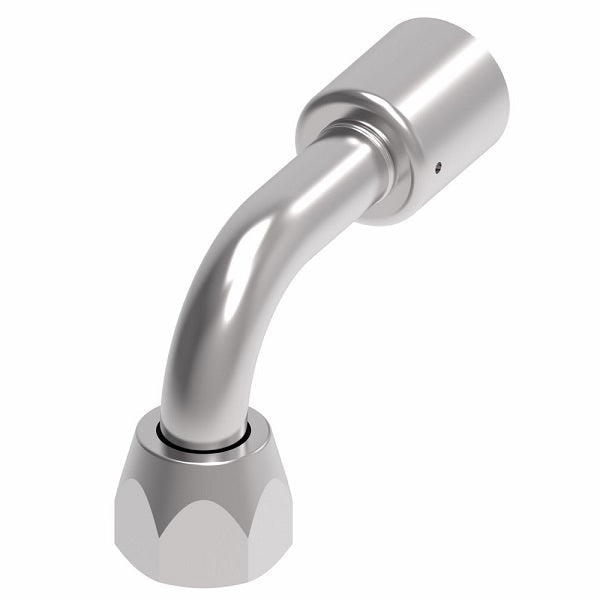

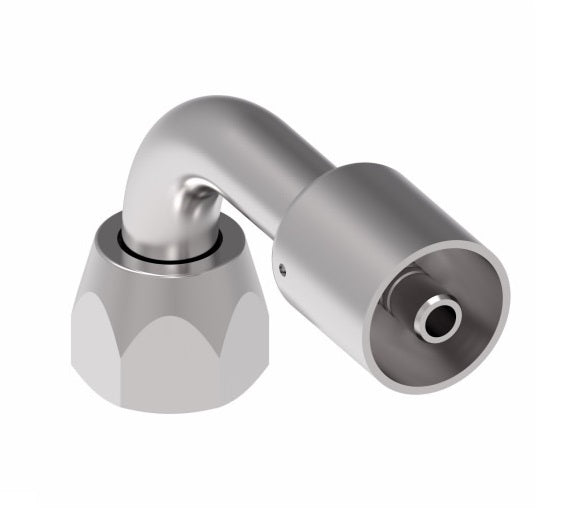

75710E-470 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 90° Elbow Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-470 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 90° Elbow Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-470 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 90° Elbow Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel
75710E-470 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 90° Elbow Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel

75710E-470 Weatherhead by Danfoss | 757 'E' Series | Female SAE 45° Flare Swivel Tube 90° Elbow Crimp Fitting | -10 Female SAE 45° Flare Swivel x -08 Hose Barb | Steel

$24.87 - $24.87
$24.87
$24.87 - $24.87
$24.87

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female SAE 45° Flare Swivel Tube - 90° Elbow
Specifications for Variant SKU: 75710E-470 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female SAE 45 Flare, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size A Thread Size Run
R		 Drop
B		 Hose Cut-Off
Factor		 Hex
F
75706E-466 5/16" 3/8" 4.07" 5/8-18 2.67" 1.12" 2.75" 3/4"
75708E-468 13/32" 1/2" 4.14" 3/4-16 2.74" 1.31" 2.88" 7/8"
75710E-470 1/2" 5/8" 4.25" 7/8-14 2.85" 1.56" 3.00" 1-1/16"
75712E-470 5/8" 5/8" 4.35" 7/8-14 2.85" 1.50" 3.00" 1-1/16"
75712E-472 5/8" 3/4" 4.45" 1-1/16-14 2.95" 1.75" 3.13" 1-1/4"

Note: Drawings may differ from actual parts.
