75710E-X10 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel

75710E-X10 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel

Name: 75710E-X10 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -10 Male SAE 45° x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-X10 Danfoss
Price: 52.13 USD
Availability: InStock

$52.13 - $52.13

$52.13

$52.13 - $52.13

$52.13

Weatherhead by Danfoss

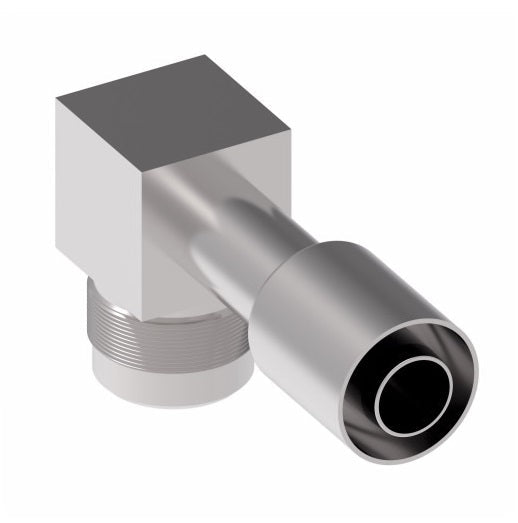

Coll-O-Crimp 757 'E' Series Crimp Fitting - Male SAE 45° Rigid - 90° Elbow

Specifications for Variant SKU: 75710E-X10 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male SAE 45 Flare, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Thread Size	Length A	Run R	Drop B	Hose Cut-Off Factor	Hex Square F
75710E-X10	1/2"	5/8"	7/8-14	4.25"	2.85"	1.47"	3.00"	7/8"
75712E-X12	5/8"	3/4"	1-1/16-14	4.45"	2.95"	1.56"	3.00"	1-1/16"

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
