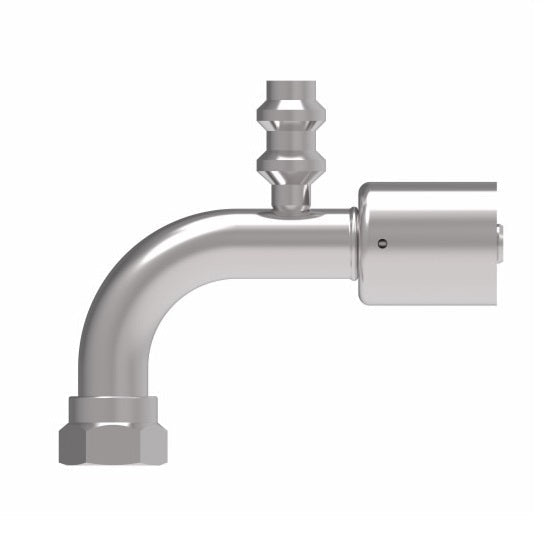

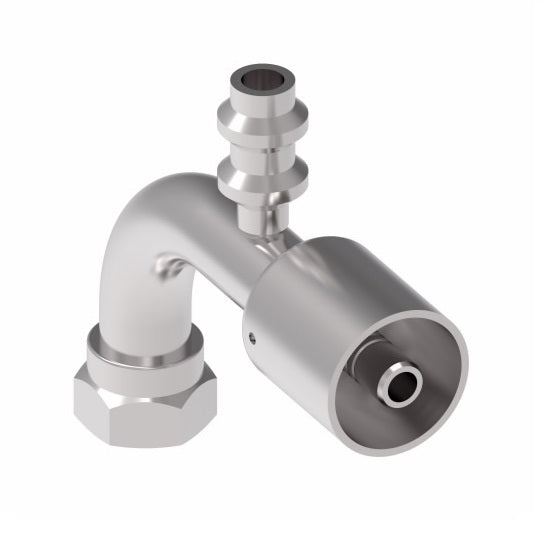

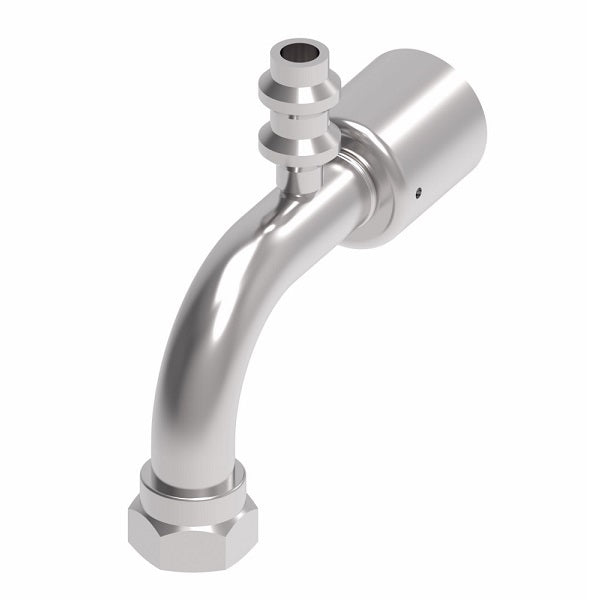

75710E-Z01 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

75710E-Z01 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel

Name: 75710E-Z01 Weatherhead by Danfoss | 757 'E' Series | Female Bumped Tube O-Ring Swivel Tube 90° Elbow with R134a Low Service Port Crimp Fitting | -10 Female Bumped Tube O-Ring Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 75710E-Z01 Danfoss
Price: 42.08 USD
Availability: InStock

$42.08 - $42.08

$42.08

$42.08 - $42.08

$42.08

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Female Bumped Tube O-Ring Swivel Tube with R134a Service Port - 90° Elbow

Quantity

Specifications for Variant SKU: 75710E-Z01 Danfoss
Brand:	Weatherhead
Series:	757 'E' Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H757 Series

Applications:
Used with R134a and R12 applications. Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
Determined by hose burst pressure.
Material:
Carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H757


Steel Part Number	Hose I.D.	Tube Size	Port	A	Thread Size	Run R	Drop B	Hose Cut-Off Factor	Hex F	Length L
75706E-Z97	5/16"	3/8"	High Side Port	2.52"	5/8-18	2.12"	1.12"	2.75"	3/4"	1.50"
75708E-Z99	13/32"	1/2"	High Side Port	4.15"	3/4-16	2.75"	1.68"	2.88"	7/8"	1.50"
75710E-Z01	1/2"	5/8"	Low Side Port	3.78"	7/8-14	2.38"	1.50"	3.00"	1-1/16"	1.50"
75712E-Z01	5/8"	5/8"	Low Side Port	4.61"	7/8-14	3.11"	1.95"	3.00"	1-1/16"	1.50"

Note: Drawings may differ from actual parts.
