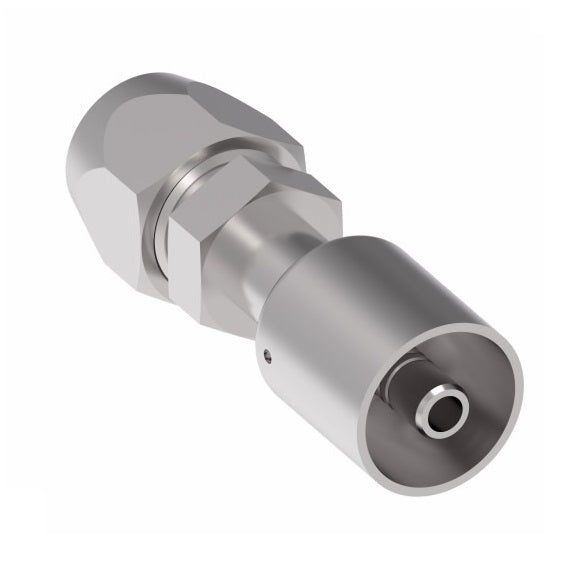

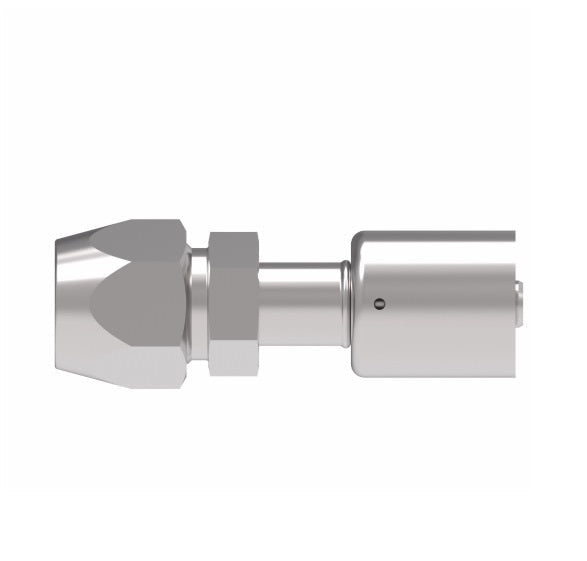

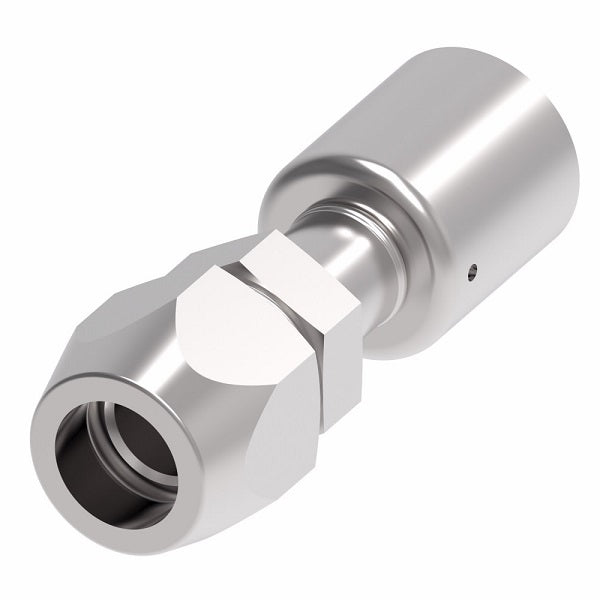

75712E-762 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -12 Compression x -10 Hose Barb | Steel
75712E-762 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -12 Compression x -10 Hose Barb | Steel
75712E-762 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -12 Compression x -10 Hose Barb | Steel
75712E-762 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -12 Compression x -10 Hose Barb | Steel

75712E-762 Weatherhead by Danfoss | 757 'E' Series | Male Rigid Compression (with Nut and Sleeve) Crimp Fitting | -12 Compression x -10 Hose Barb | Steel

$43.76 - $43.76
$43.76
$43.76 - $43.76
$43.76

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Crimp Fitting - Male Rigid Compression (with Nut and Sleeve) - Straight
Specifications for Variant SKU: 75712E-762 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Tube Compression, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Hose Cut-Off
Factor		 Hex
F		 Hex G
75706E-Z06 5/16" 3/8" 5/8-18 2.59" 1.38" 5/8" 3/4"
75706E-758 5/16" 1/2" 3/4-16 2.71" 1.50" 3/4" 7/8"
75708E-756 13/32" 3/8" 5/8-18 2.65" 1.38" 5/8" 3/4"
75708E-758 13/32" 1/2" 3/4-16 2.78" 1.50" 3/4" 7/8"
75708E-760 13/32" 5/8" 7/8-14 2.90" 1.63" 7/8" 1-1/16"
75710E-758 1/2" 1/2" 3/4-16 2.84" 1.63" 3/4" 7/8"
75710E-760 1/2" 5/8" 7/8-14 2.90" 1.63" 7/8" 1-1/16"
75712E-760 5/8" 5/8" 7/8-14 3.13" 1.75" 7/8" 1-1/16"
75712E-762 5/8" 3/4" 1-1/16-14 3.25" 1.88" 1-1/16" 1-1/4"

Note: Drawings may differ from actual parts.
