75712E-X12 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -12 Male SAE 45° x -10 Hose Barb | Steel
75712E-X12 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -12 Male SAE 45° x -10 Hose Barb | Steel
75712E-X12 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -12 Male SAE 45° x -10 Hose Barb | Steel
75712E-X12 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -12 Male SAE 45° x -10 Hose Barb | Steel

75712E-X12 Weatherhead by Danfoss | 757 'E' Series | Male SAE 45° Rigid 90° Elbow Crimp Fitting | -12 Male SAE 45° x -10 Hose Barb | Steel

$53.53 - $53.53
$53.53
$53.53 - $53.53
$53.53

Weatherhead by Danfoss

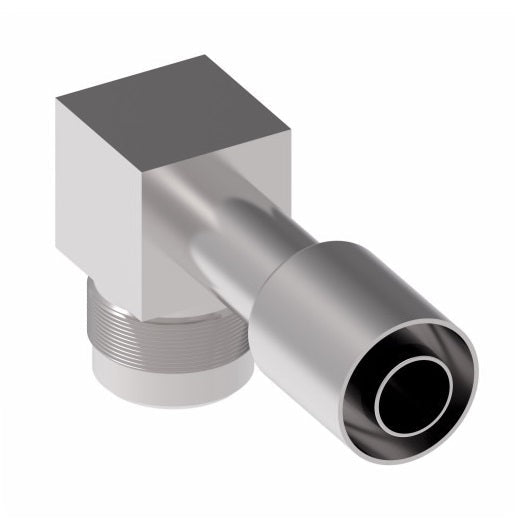

Coll-O-Crimp 757 'E' Series Crimp Fitting - Male SAE 45° Rigid - 90° Elbow
Specifications for Variant SKU: 75712E-X12 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male SAE 45 Flare, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Hose I.D. Tube Size Thread Size Length
A		 Run
R		 Drop
B		 Hose Cut-Off
Factor		 Hex Square
F
75710E-X10 1/2" 5/8" 7/8-14 4.25" 2.85" 1.47" 3.00" 7/8"
75712E-X12 5/8" 3/4" 1-1/16-14 4.45" 2.95" 1.56" 3.00" 1-1/16"

Note: Drawings may differ from actual parts.
