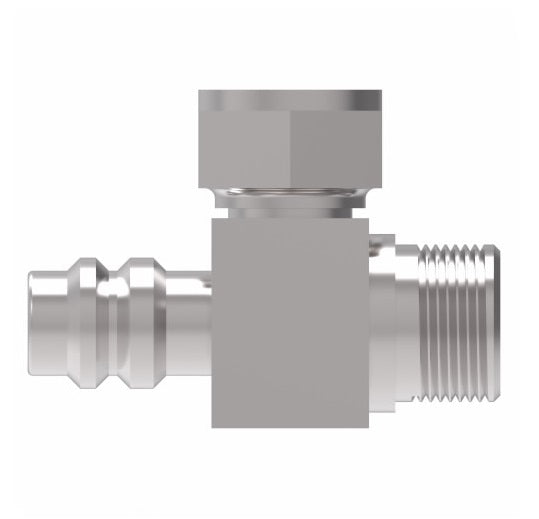

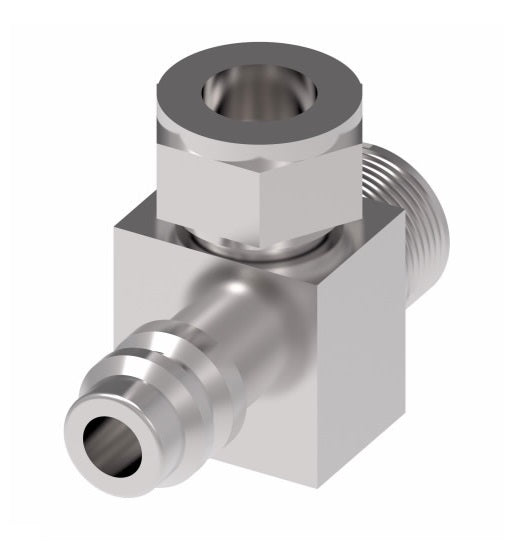

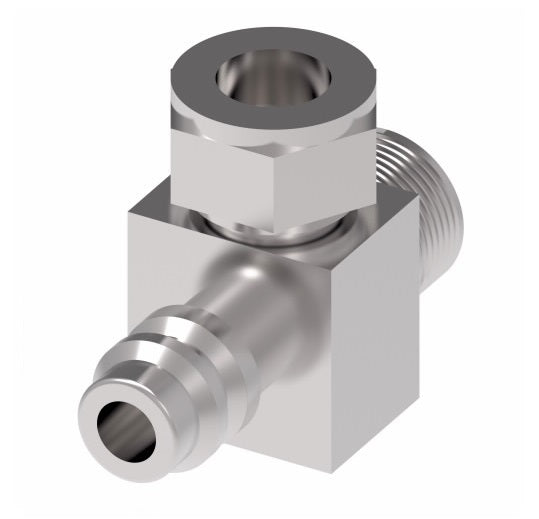

75750 Weatherhead by Danfoss | 757 'E' Series | Tube-O to Male Bumped Tube O-Ring with R134a High Side Service Port 90° Elbow Adapter | 1/2" Tube Size | Steel

75750 Weatherhead by Danfoss | 757 'E' Series | Tube-O to Male Bumped Tube O-Ring with R134a High Side Service Port 90° Elbow Adapter | 1/2" Tube Size | Steel

$46.45 - $46.45
$46.45
$46.45 - $46.45
$46.45

Weatherhead by Danfoss
Coll-O-Crimp 757 'E' Series Adapter - Tube-O to Male Bumped Tube O-Ring with R134a High Side Service Adapter - 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 75750 Danfoss
Brand: Weatherhead
Series: 757 'E' Series
Shape (Orientation): 90 Degree
Material(s): Steel
Compatible with the following Series: H757 Series
Applications:
  • Used with R134a and R12 applications.
  • Ideal for heavy duty truck use as well as industrial and automotive applications.
Pressure:
  • Determined by hose burst pressure.
Material:
  • Carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H757
Steel
Part Number		 Tube Size Port Length
A		 Drop
B		 Tube-O Thread
F
75750 1/2" High Side Port 2.64" 1.15" 3/4-16
75751 5/8" Low Side Port 2.78" 1.29" 7/8-14

Note: Drawings may differ from actual parts.
