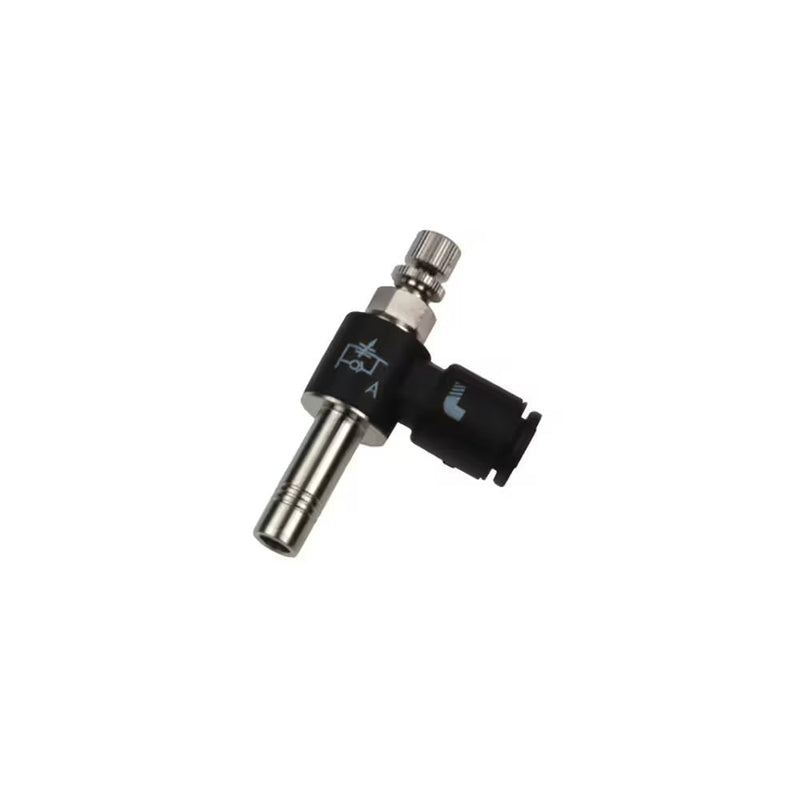

7630 06 00 by Parker | Legris Miniature Plug-In Flow Regulator | 6 mm Tube Size | 46 mm Max Length | 90° Elbow | Polymer

7630 06 00 by Parker | Legris Miniature Plug-In Flow Regulator | 6mm Tube Size | 46mm Max Length | 90° Elbow | Polymer | Pack of 10

Save $162.31 Save $162.31
$405.78
$405.78 - $405.78
$405.78
$243.47
$243.47 - $243.47
$243.47

by Parker Hannifin
Flow Control Regulators:7630 Miniature Plug-In Flow Regulator, Exhaust

Package Quantity: 10 Units

Specifications for Variant SKU: 7630 06 00 Parker | 10 |
Series: 7630 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F G H (max) H (min) H1 H2 L Kg
7630 04 00 4 mm 6 mm 9 mm 28 mm 25.5 mm 9.5 mm 15.5 mm 17 mm .007 Kg
7630 06 00 6 mm 7 mm 11.5 mm 29 mm 27.5 mm 10.5 mm 17.5 mm 18.5 mm .012 Kg
