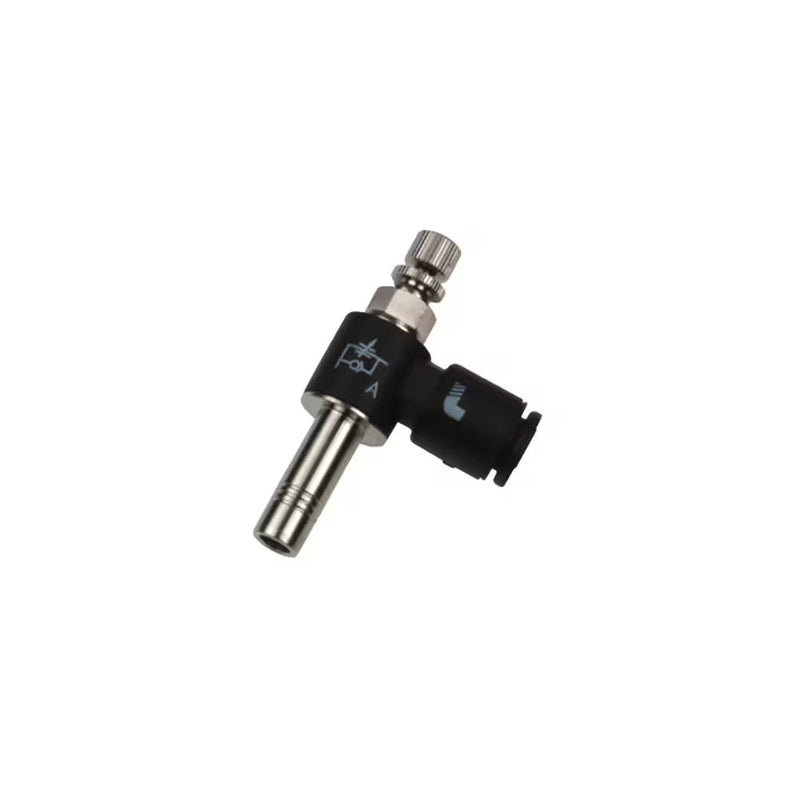

7630 53 00 by Parker | Legris Plug-In Miniature Flow Control - Meter Out | 1/8" Push-to-Connect x 1/8" Tube Stem | 6 mm Hex | 90° Elbow | Nylon

7630 53 00 by Parker | Legris Plug-In Miniature Flow Control - Meter Out | 1/8" Push-to-Connect x 1/8" Tube Stem | 6 mm Hex | 90° Elbow | Nylon | Pack of 10

Save $200.80 Save $200.80
$502.00
$502.00 - $502.00
$502.00
$301.20
$301.20 - $301.20
$301.20

by Parker Hannifin
Flow Controls – Plug-in:7630/7631 - plug-in miniature flow control fractional inch tube

Package Quantity: 10 Units

Specifications for Variant SKU: 7630 53 00 Parker | 10 |
Series: 7630 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Mini/Micro Size
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated tailpiece
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD F H (min) H (max) H1 H2 L Oz
7630 53 00 1/8" 6 mm .94" 1.04" .12" .59" .67" .25 Oz
7630 56 00 1/4" 7 mm 1.08" 1.18" .12" .73" .73" .39 Oz
