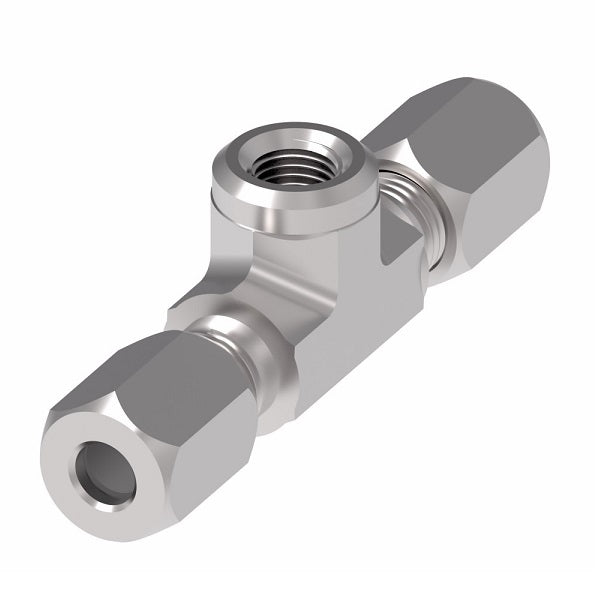

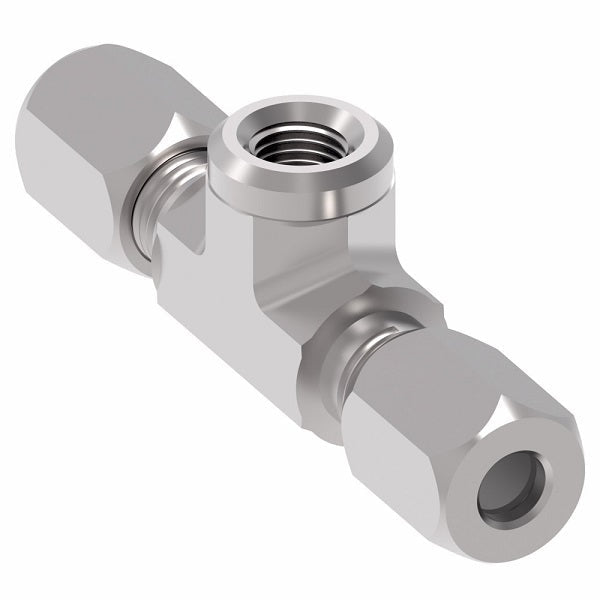

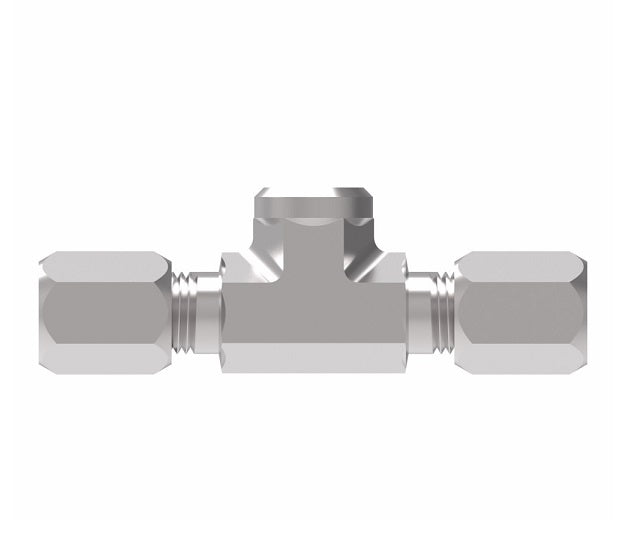

7655X6 Ermeto by Danfoss | 7000 Series | Female Pipe Branch/Tube Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Female NPTF | Steel
7655X6 Ermeto by Danfoss | 7000 Series | Female Pipe Branch/Tube Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Female NPTF | Steel
7655X6 Ermeto by Danfoss | 7000 Series | Female Pipe Branch/Tube Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Female NPTF | Steel
7655X6 Ermeto by Danfoss | 7000 Series | Female Pipe Branch/Tube Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Female NPTF | Steel

7655X6 Ermeto by Danfoss | 7000 Series | Female Pipe Branch/Tube Tee | 3/8" Tube OD x 3/8" Tube OD x 1/4" Female NPTF | Steel

$31.74 - $31.74
$31.74
$31.74 - $31.74
$31.74

Ermeto by Danfoss
Female Pipe Branch/Tube Tee
Tube x Tube x Female NPTF

Ermeto Fittings (7000 Series) are especially designed for making leak-proof tube connections. This Fitting will effectively withstand high pressure, severe vibration and extreme temperature. No special tools are needed for assembly. Simply cut tube square, preset sleeve on tubing and assemble.
Specifications for Variant SKU: 7655X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 3/8in Tube Compression, 1/4in Female NPTF, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE No. 080427
  • Specifically designed to meet all ASME and SAE approved standards for hydraulic flareless tube Fittings.
Applications:
  • Hydraulic Systems.
  • Instrumentation and Chemical Processing Systems.
  • Highly recommended for High Pressure Applications.
Features:
  • An excellent high pressure Fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
  • Danfoss Ermeto Fittings have a zinc trivalent finish, which fully resists the effects of nonflammable hydraulic fluids.
  • Excellent vibration resistance.
  • Operating pressure up to 10,000 psi depending on tube and Fitting size.
Temperature Range:
  • -65°F to +400°F (-53°C to +204°C) at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size.
Additional Information:
Steel
Part Number 		Steel
Body Only
Part Number 		Tube O.D. Female Pipe Thread D M N Across
Flats
7655X4 B7655X4 1/4" 1/8" 0.203" 0.89" 0.66" 9/16"
7655X4X4X4 B7655X4X4X4 1/4" 1/4" 0.203" 1.03" 0.88" 3/4"
7655X6 B7655X6 3/8" 1/4" 0.281" 1.05" 0.88" 3/4"
7655X8 B7655X8 1/2" 3/8" 0.422" 1.23" 1.02" 7/8"
7655X10 B7655X10 5/8" 1/2" 0.500" 1.42" 1.23" 1-1/16"
7655X12 B7655X12 3/4" 3/4" 0.656" 1.58" 1.36" 1-5/16"
7655X16 B7655X16 1" 1" 0.875" 1.73" 1.62" 1-5/8"
