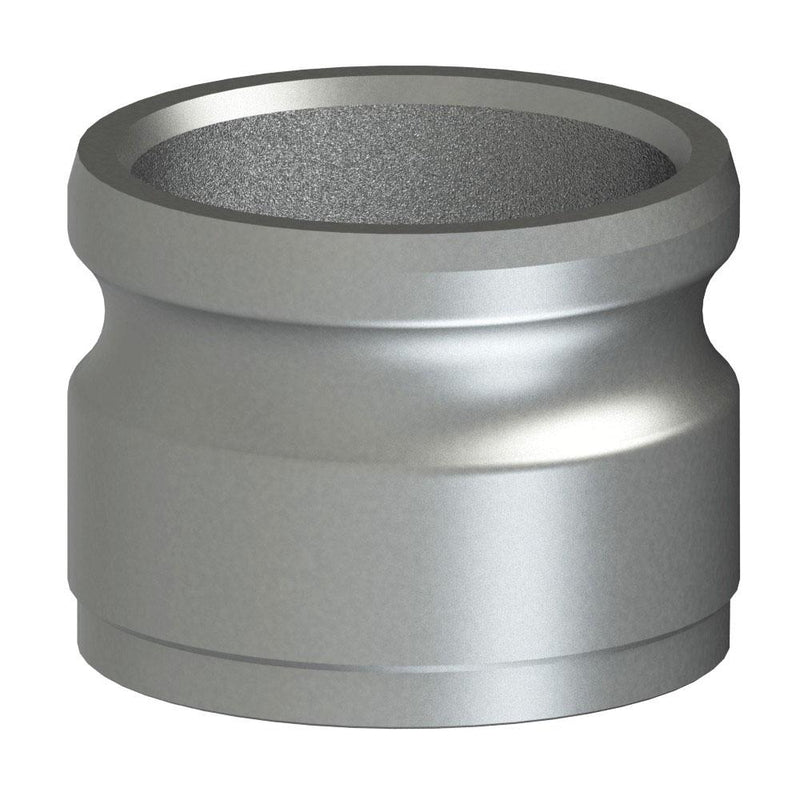

76600701 (07AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 3/4" Adapter x Butt Weld for Schedule 40 Pipe | Hastelloy C

76600701 (07AWB) by PT-Coupling | Cam & Groove Adapter | Type AWB | 3/4" Adapter x Butt Weld for Schedule 40 Pipe | Hastelloy C

Save $155.17 Save $155.17
$418.02
$418.02 - $418.02
$418.02
$262.85
$262.85 - $262.85
$262.85

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWB | Adapter x Butt Weld for Schedule 40 Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 76600701 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3/4in Male Cam & Groove, 3/4in Weld End
Material(s): Hastelloy C
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
Part
Name		 Item # Size Overall
Length
(A)		 Inside
Diameter
(B)		 Max. Allowable
Working Press.
(PSI)*
07AWB 76600701 3/4" 1.40" 0.75" 250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
