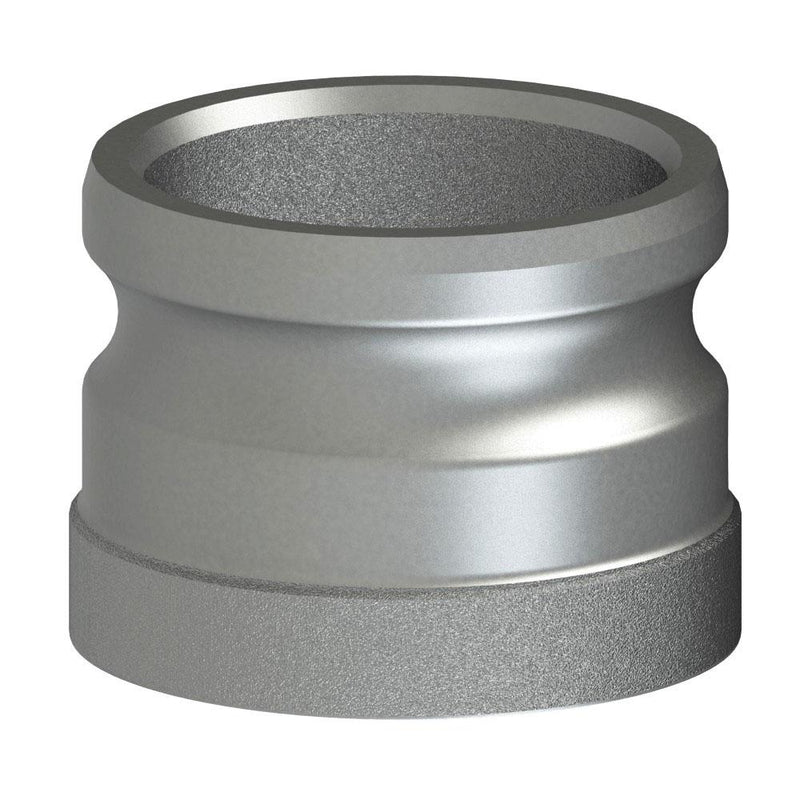

76602004 (20AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 2" Adapter x Socket Weld for Pipe | Hastelloy C

76602004 (20AWS) by PT-Coupling | Cam & Groove Adapter | Type AWS | 2" Adapter x Socket Weld for Pipe | Hastelloy C

Save $185.66 Save $185.66
$500.15
$500.15 - $500.15
$500.15
$314.49
$314.49 - $314.49
$314.49

PT Coupling
Cam & Groove (Camlock) Adapter | Type AWS | Adapter x Socket Weld for Pipe | Hastelloy C

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 76602004 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 2in Male Cam & Groove, 2in Weld End
Material(s): Hastelloy C

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Weld Fittings - Part AWS - Adapter x Socket Weld for Pipe - Hastelloy C®
Features & Applications:
  • These corrosion resistant cam & groove couplings are designed for acid applications in highly corrosive media including hydrochloric acid and sulfuric acid.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Size Socket
Depth
(A)		 Outside
Diameter
(B)		 Inside
Diameter
(C)		 Overall
Length
(D)		 Socket
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
10AWS 76601001 1" 0.30" 1.45" 0.88" 1.44" 1.36" 250 PSI
15AWS 76601501 1-1/2" 0.40" 2.25" 1.35" 2.13" 1.95" 250 PSI
20AWS 76602004 2" 0.40" 2.74" 1.81" 2.50" 2.44" 250 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
