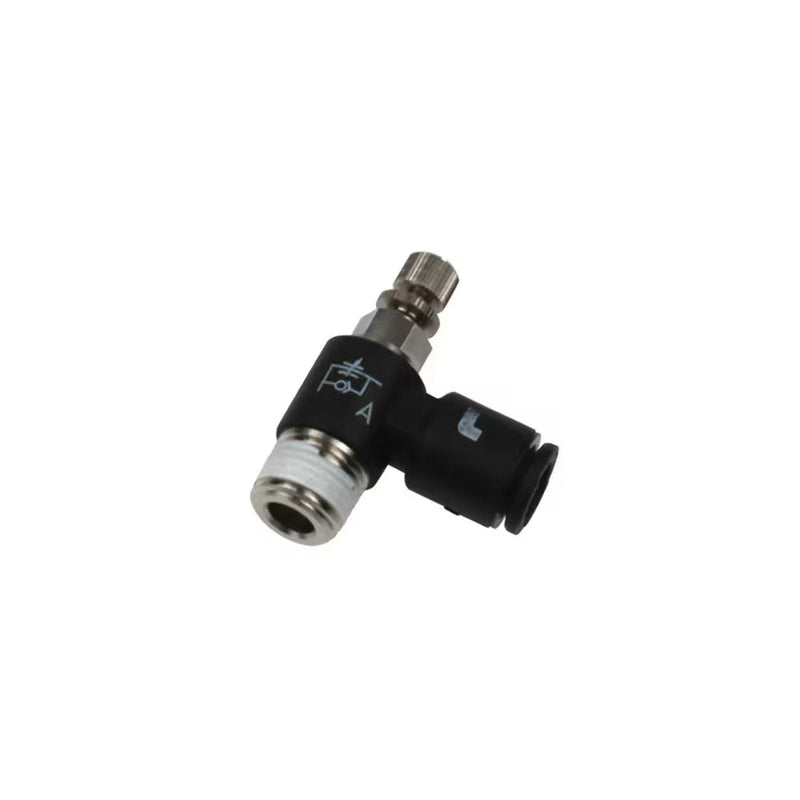

7665 06 10 by Parker | Legris Miniature Flow Regulator Exhaust | 6mm Tube Size x 1/8" Male BSPT Thread | 7mm Hex | 90° Elbow | Polymer | Pack of 10

Save $30.43

$255.90

$255.90 - $255.90

$255.90

$225.47

$225.47 - $225.47

$225.47

by Parker Hannifin
Flow Control Regulators:7665 Miniature Flow Regulator Exhaust, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7665 06 10 Parker \| 10 \|
Series:	7665 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	G	H (max)	H (min)	L	L1	Kg
7665 04 10	4 mm	1/8"	7 mm	11.5 mm	27.5 mm	25 mm	18 mm	6 mm	.012 Kg
7665 06 10	6 mm	1/8"	7 mm	11.5 mm	27.5 mm	25 mm	18.5 mm	6 mm	.012 Kg
7665 06 13	6 mm	1/4"	8 mm	13.5 mm	30 mm	27.5 mm	19 mm	7 mm	.019 Kg
7665 06 17	6 mm	3/8"	17 mm	13.5 mm	34 mm	31.5 mm	19 mm	7 mm	.025 Kg
7665 08 10	8 mm	1/8"	7 mm	13 mm	14 mm	24 mm	26 mm	7 mm	.021 Kg
7665 08 13	8 mm	1/4"	16 mm	19 mm	29 mm	25 mm	24.5 mm	9.5 mm	.033 Kg
7665 08 17	8 mm	3/8"	20 mm	23 mm	36 mm	30 mm	29 mm	11.5 mm	.061 Kg

Pre-coated thread
