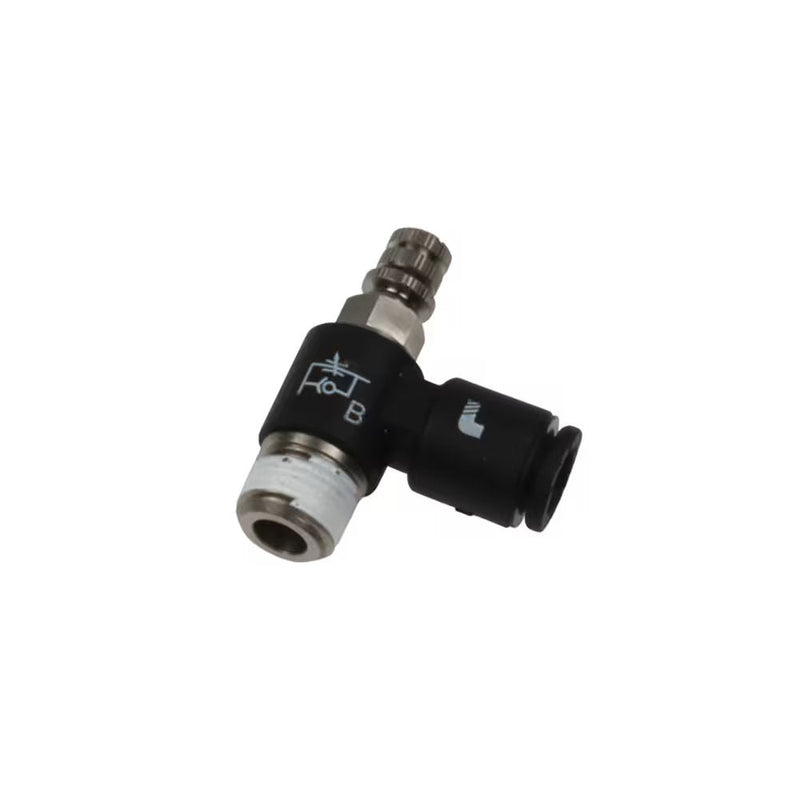

7668 04 10 by Parker | Legris Miniature Flow Regulator Supply | 4 mm Tube Size x 1/8" Male BSPT Thread | 7 mm Hex | 90° Elbow | Polymer

7668 04 10 by Parker | Legris Miniature Flow Regulator Supply | 4mm Tube Size x 1/8" Male BSPT Thread | 7mm Hex | 90° Elbow | Polymer | Pack of 10

Save $116.98 Save $116.98
$292.45
$292.45 - $292.45
$292.45
$175.47
$175.47 - $175.47
$175.47

by Parker Hannifin
Flow Control Regulators:7668 Miniature Flow Regulator Supply, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7668 04 10 Parker | 10 |
Series: 7668 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C F G H (max) H (min) L L1 Kg
7668 04 10 4 mm 1/8" 7 mm 11.5 mm 28.5 mm 25.5 mm 18 mm 6 mm .011 Kg
7668 06 10 6 mm 1/8" 7 mm 11 mm 29 mm 24 mm 18.5 mm 6 mm .012 Kg
7668 06 13 6 mm 1/4" 8 mm 13.5 mm 31 mm 27 mm 19 mm 7 mm .019 Kg
7668 08 10 8 mm 1/8" 13 mm 14 mm 28.5 mm 25 mm 26 mm 7 mm .020 Kg
7668 08 13 8 mm 1/8" 16 mm 19 mm 30 mm 26 mm 27.5 mm 9.5 mm .032 Kg

Pre-coated thread
