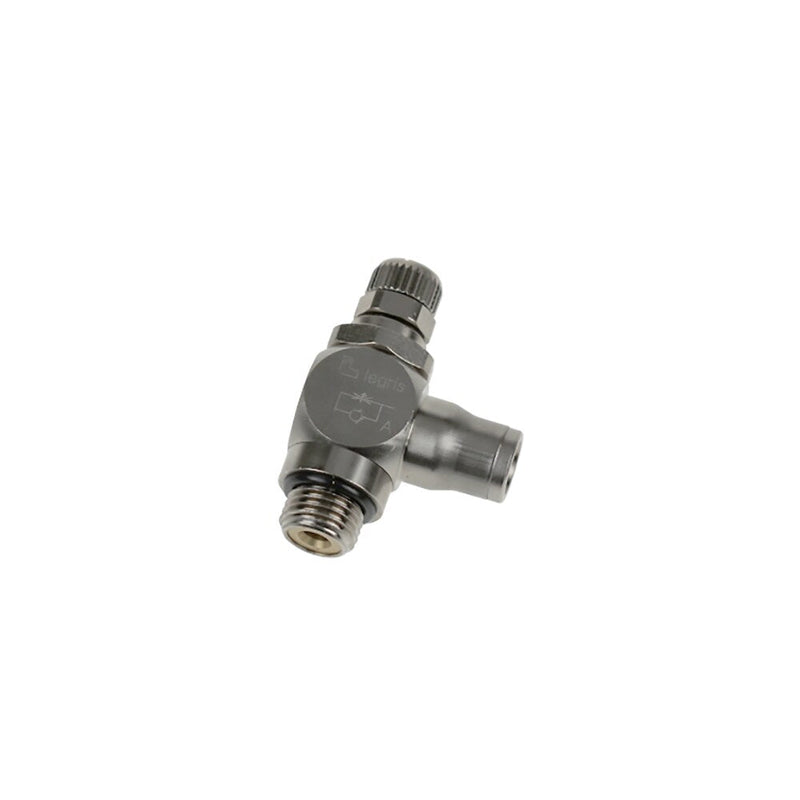

7680 06 10 by Parker | Legris Compact Flow Regulator | 6 mm Tube Size x 1/8" Male BSPP Thread | 13 mm Hex | 49 mm Length | 90° Elbow | Nickel-Plated Brass

7680 06 10 by Parker | Legris Compact Flow Regulator | 6mm Tube Size x 1/8" Male BSPP Thread | 13mm Hex | 49mm Length | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $424.98 Save $424.98
$1,062.45
$1,062.45 - $1,062.45
$1,062.45
$637.47
$637.47 - $637.47
$637.47

by Parker Hannifin
Flow Control Regulators:7680 Compact Flow Regulator, Exhaust, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7680 06 10 Parker | 10 |
Series: 7680 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD C E F H (max) H (min) J L Kg
7680 06 10 6 mm 1/8" 5 mm 13 mm 44 mm 39 mm 7.5 mm 24.5 mm .045 Kg
