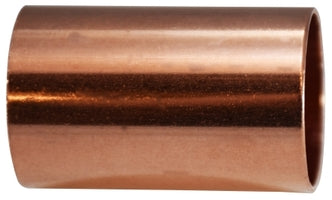

77222 (77-222) by Midland | Copper Fitting | Coupling (Socket) Less Tube Stop | C x C | 1/2" ID | Straight

77222 (77-222) by Midland | Copper Fitting | Coupling (Socket) Less Tube Stop | C x C | 1/2" ID | Straight

Save $0.89 Save $0.89
$2.22
$2.22 - $2.22
$2.22
$1.33
$1.33 - $1.33
$1.33

Midland Industries
Copper Fitting - Wrot Solder Joint - Coupling (Socket) Less Tube Stop - C x C

Inventory @ Manufacturers Warehouse: 18 Units
Specifications for Variant SKU: 77222 Midland
Shape (Orientation): Straight
Material(s): Copper
Applicable Specs & Approvals: NSF 61, ASTM B 88, ASTM B 306, ASTM A 306
Features:
  • Temp range 32° to 200°F
  • Pressure @100°F:
    • 1/8-1 : 500 PSI
    • 1-1/4-2 : 400 PSI
    • 2-1/2 - 3: 300 PSI
Specifications:
  • NSF - 61 Certified
  • Alloy C12200
Symbol Of Joint Ends:
  • C = Solder joint fitting end made to receive copper tube diameter
  • Ftg. = Solder joint fitting end made to copper tube diameter
  • F = Internal ANSI Standard Taper Pipe Thread-Female
  • M = External ANSI Standard Taper Pipe Thread-Male
  • Threaded ends ANSI/ ASME B1. Solder ends ASTM B88

The Above Conforms To ASTM B 88 & ASTM B 306, A 306.

Crossover Series:
WC-400NS 601
Nominal Size Joint Ends Metal Thickness
T
(in)		 Inside Diameter
O
(in)
Male End Female End
Outside Diameter
A
(in)		 Average Tolerance
(mm)		 Actual MIN
(in)		 O.D. MAX
(in)		   Inside Diameter
F
(in)		 Average Tolerance
(mm)		 Actual MIN
(in)		 O.D. MAX
(in)
1/8" 2/8" 0.03mm 2/8" 2/8" 3/8" 2/8" 0.03mm 2/8" 2/8" 3/8" 0 2/8"
1/4" 3/8" 0.03mm 3/8" 3/8" 3/8" 3/8" 0.03mm 3/8" 3/8" 3/8" 0 2/8"
3/8" 4/8" 0.03mm 4/8" 4/8" 3/8" 4/8" 0.03mm 4/8" 4/8" 3/8" 0 3/8"
1/2" 5/8" 0.03mm 5/8" 5/8" 4/8" 5/8" 0.03mm 5/8" 5/8" 3/8" 0 4/8"
5/8" 6/8" 0.03mm 6/8" 6/8" 5/8" 6/8" 0.03mm 6/8" 6/8" 5/8" 0 4/8"
3/4" 7/8" 0.03mm 7/8" 7/8" 6/8" 7/8" 0.03mm 7/8" 7/8" 5/8" 0 5/8"
Part Number Nominal (ID) Approx. Weight
(Lbs.)		 IND #
77219
(77-219)		 1/8" 0.01 W 01900
77220
(77-220)		 1/4" 0.01 W 01901
77222
(77-222)		 1/2" 0.03 W 01903
77223
(77-223)		 3/4" 0.06 W 01905
77224
(77-224)		 1" 0.10 W 01906
77225
(77-225)		 1-1/4" 0.15 W 01907
77226
(77-226)		 1-1/2" 0.22 W 01908
