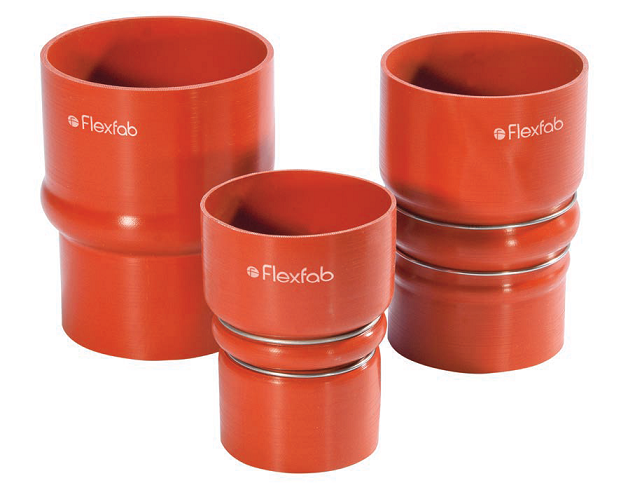

7726 FlexFab 4-ply Charge Air Connector (CAC) Convoluted Reducer - 3.00"/3.50" ID - 3.23"/3.73" OD - Red - 5"

7726 by FlexFab | 4-ply Charge Air Connector (CAC) Convoluted Reducer | 3.00"/3.50" ID | 3.23"/3.73" OD | Red | 5" Overall Length

Save $21.33 Save $21.33
$53.33
$53.33 - $53.33
$53.33
$32.00
$32.00 - $32.00
$32.00

Flexfab Industrial Hose - Charge Air Connector (CAC) Convoluted Reducers
Specifications for Variant SKU: 7726 Flexfab
Shape (Orientation): Straight
Material(s): Silicone Coated Fabric, Stainless Steel
Overview:
  • Can be used on both hot side and cold side of the CAC system
Construction:
  • 4-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings where noted
Specifications:
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Wall thickness is .092"/.132"
Applications:
  • Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
Part Number Inside Diameter Outside Diameter Overall Length Convolutes(Humps) Stainless SteelRings Max Operating Pressure - PSI WeightLBS Clamp
7868 2.50"/3.00" 2.73"/3.23" 4.00" 1 None 40 PSI 0.5 lbs FLX2583-0250 / FLX2583-0300 FLX2584-0312 / FLX2584-0362
7726 3.00"/3.50" 3.23"/3.73" 5.00" 1 2 55 PSI 0.5 lbs FLX2583-0300 / FLX2583-0350 FLX2584-0362 / FLX2584-0412
7766 3.00"/4.00" 3.23"/4.23" 6.30" 1 2 50 PSI 0.5 lbs FLX2583-0300 / FLX2583-0400 FLX2584-0362 / FLX2584-0462
7880 3.50"/4.00" 3.73"/4.23" 6.00" 2 2 50 PSI 0.5 lbs FLX2583-0350 / FLX2583-0400 FLX2584-0412 / FLX2584-0462
7711 4.00"/4.50" 4.23"/4.73" 6.00" 1 None 30 PSI 0.5 lbs FLX2583-0400 / FLX2583-0450 FLX2584-0462 / FLX2584-0512
7866 4.00"/4.50" 4.23"/4.73" 7.00" 2 3 45 PSI 0.6 lbs FLX2583-0400 / FLX2583-0450 FLX2584-0462 / FLX2584-0512
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
