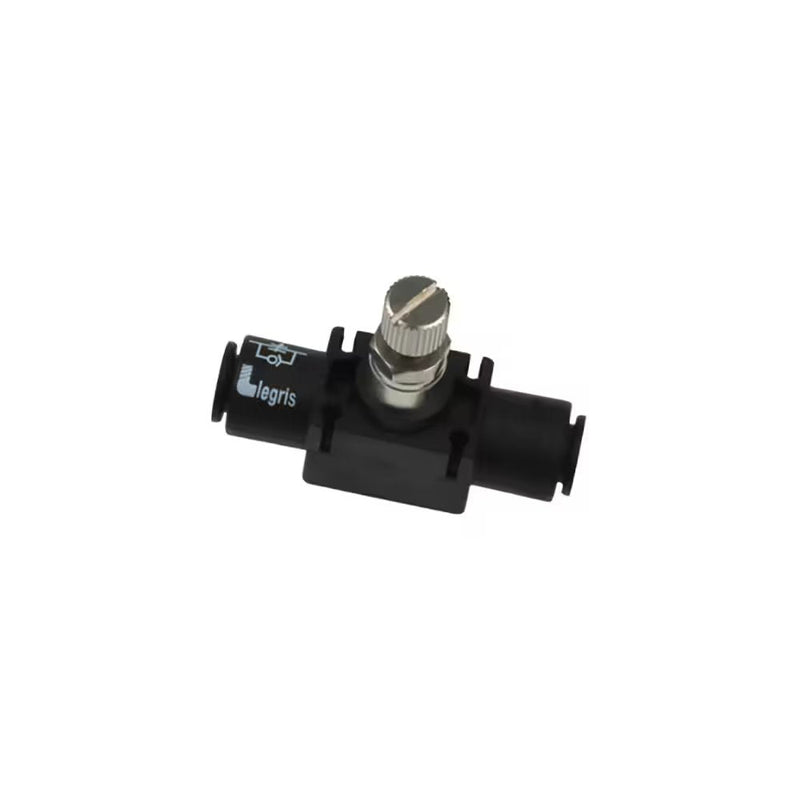

7770 08 00 by Parker | Legris In-Line One-Way Flow Regulator | 8mm Tube Size | 11mm Hex | 58mm Length | Straight | Polymer | Pack of 5

Save $37.85

$327.32

$327.32 - $327.32

$327.32

$289.47

$289.47 - $289.47

$289.47

by Parker Hannifin
Flow Control Regulators:7770 In-Line One-Way Flow Regulator

Package Quantity: 5 Units

Specifications for Variant SKU: 7770 08 00 Parker \| 5 \|
Series:	7770 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	H (max)	H (min)	K	L	L1	N	N1	ØT	Kg
7770 04 00	4 mm	5 mm	33.5 mm	29.5 mm	12 mm	36 mm	15 mm	11 mm	8 mm	2.2 mm	.009 Kg
7770 06 00	6 mm	8 mm	44.5 mm	40.5 mm	17 mm	51 mm	23 mm	17 mm	11 mm	3.2 mm	.024 Kg
7770 08 00	8 mm	11 mm	52.5 mm	46.5 mm	18.5 mm	58 mm	26 mm	20 mm	12.5 mm	3.2 mm	.048 Kg
7770 10 00	10 mm	14 mm	61 mm	53 mm	24 mm	73 mm	33 mm	26 mm	16 mm	4.2 mm	.097 Kg
7770 12 00	12 mm	14 mm	67.5 mm	59 mm	28 mm	85 mm	35 mm	27.5 mm	20 mm	4.2 mm	.132 Kg
