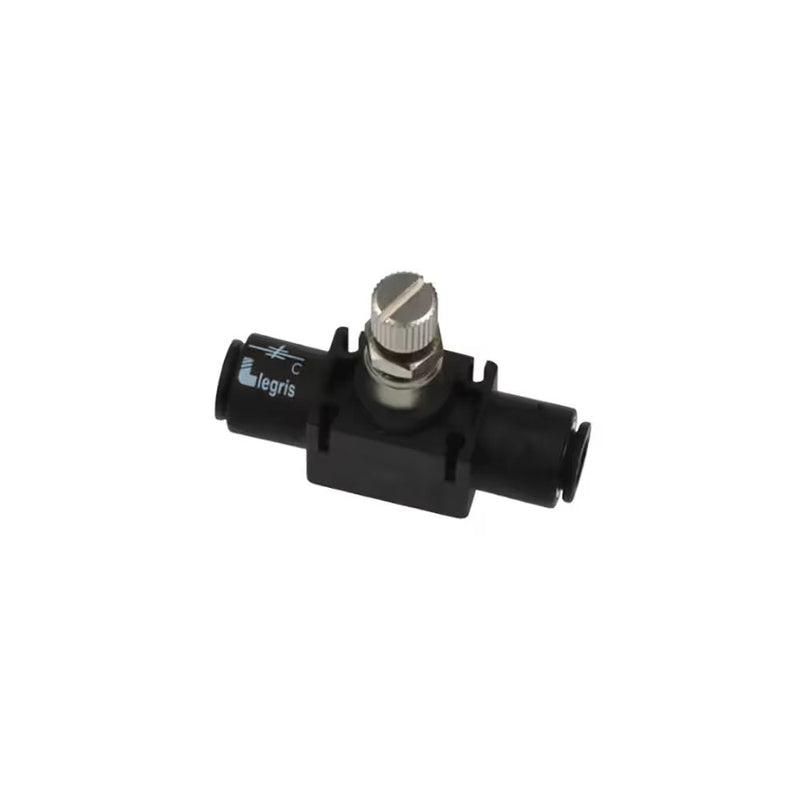

7772 06 00 by Parker | Legris Bi-Directional In-Line Flow Regulator | 6mm Tube Size | 8mm Hex | 51mm Length | Straight | Polymer | Pack of 5

Save $156.49

$391.22

$391.22 - $391.22

$391.22

$234.73

$234.73 - $234.73

$234.73

by Parker Hannifin
Flow Control Regulators:7772 Bi-Directional In-Line Flow Regulator

Package Quantity: 5 Units

Specifications for Variant SKU: 7772 06 00 Parker \| 5 \|
Series:	7772 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	H (max)	H (min)	K	L	L1	N	N1	ØT	Kg
7772 04 00	4 mm	5 mm	33.5 mm	29.5 mm	12 mm	36 mm	15 mm	11 mm	8 mm	2.2 mm	.009 Kg
7772 06 00	6 mm	8 mm	44.5 mm	40.5 mm	17 mm	51 mm	23 mm	17 mm	11 mm	3.2 mm	.024 Kg
7772 08 00	8 mm	11 mm	52.5 mm	46.5 mm	18.5 mm	58 mm	26 mm	20 mm	12.5 mm	3.2 mm	.054 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
