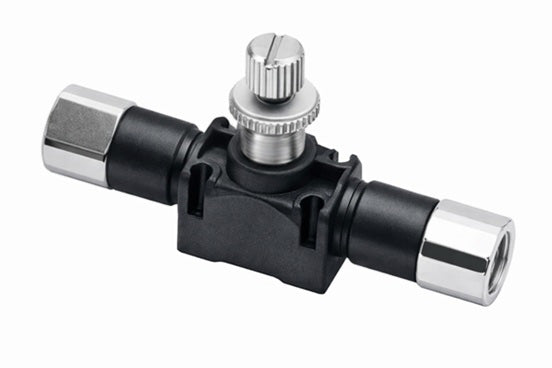

7775 18 18 by Parker | Legris Threaded In-Line Flow Control | 3/8" Female NPT Thread x 3/8" Female NPT Thread | 22 mm Hex | 3.82" Length | Straight | Nylon | Pack of 4

7775 18 18 by Parker | Legris Threaded In-Line Flow Control | 3/8" Female NPT Thread x 3/8" Female NPT Thread | 22 mm Hex | 3.82" Length | Straight | Nylon | Pack of 4

Save $162.49 Save $162.49
$406.22
$406.22 - $406.22
$406.22
$243.73
$243.73 - $243.73
$243.73

by Parker Hannifin
In-Line Flow Controls:7775 - threaded in-line flow control NPT

Package Quantity: 4 Units

Specifications for Variant SKU: 7775 18 18 Parker | 4 |
Series: 7775 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass thread
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 30° to 158° F (-1° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number NPT F F1 H (min) H1 (max) J L L1 K N1 N2 ØT Oz
7775 11 11 1/8" 13 mm 8 mm 1.56" 1.75" .55" 2.70" .91" .67" .43" .67" .12" .55 Oz
7775 14 14 1/4" 16 mm 11 mm 1.73" 1.97" .69" 3.27" 1.02" .73" .49" .79" .12" 1.20 Oz
7775 18 18 3/8" 22 mm 14 mm 2.05" 2.40" .94" 3.82" 1.30" .94" .63" 1.02" .16" 4.61 Oz
7775 22 22 1/2" 24 mm 14 mm 2.26" 2.66" 1.02" 4.76" 1.38" 1.10" .79" 1.08" .16" 5.58 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
