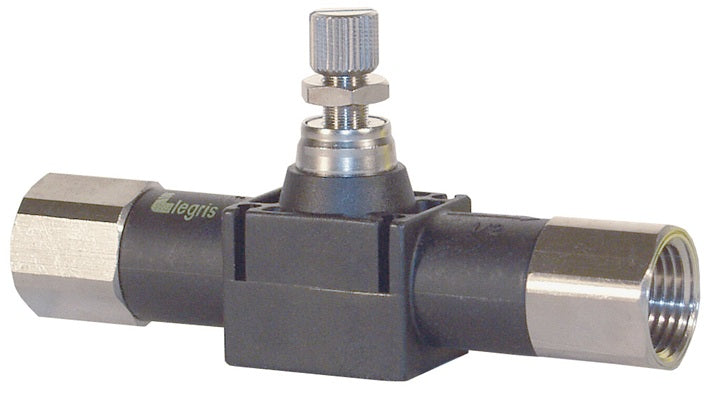

77751414 by Dixon Valve | Legris Threaded In-Line Flow Control Valve | 1/4" Female NPT | Nylon

77751414 by Dixon Valve | Legris Threaded In-Line Flow Control Valve | 1/4" Female NPT | Nylon

Save $36.53 Save $36.53
$91.33
$91.33 - $91.33
$91.33
$54.80
$54.80 - $54.80
$54.80

Dixon Valve & Coupling
Legris Threaded In-Line Flow Control Valve

Intake air flows freely through the flow control; exhaust air is metered out through a specially designed adjustment screw.
Specifications for Variant SKU: 77751414 Dixon
Brand: Legris
Shape (Orientation): Straight
Material(s): Nylon, Nickel-Plated Brass
Features:
  • Arrow on the body of the valve indicates the direction of controlled flow.
  • May be installed as meter in or meter out devices.
  • Unidirectional flow control valves.
  • Working fluid: compressed air.
Materials:
  • Body: glass reinforced nylon 6.6
  • Seal: Nitrile
  • Adjustment screw: nickel-plated brass
  • Locking nut: nickel-plated brass
  • Threads: nickel-plated brass
Specifications:
  • Pressure range: 15 PSI to 145 PSI
  • Temperature range: 32°F to 158°F (0°C to 70°C)
Part Number Female NPT
77751111 1/8"
77751414 1/4"
77751818 3/8"
77752222 1/2"
