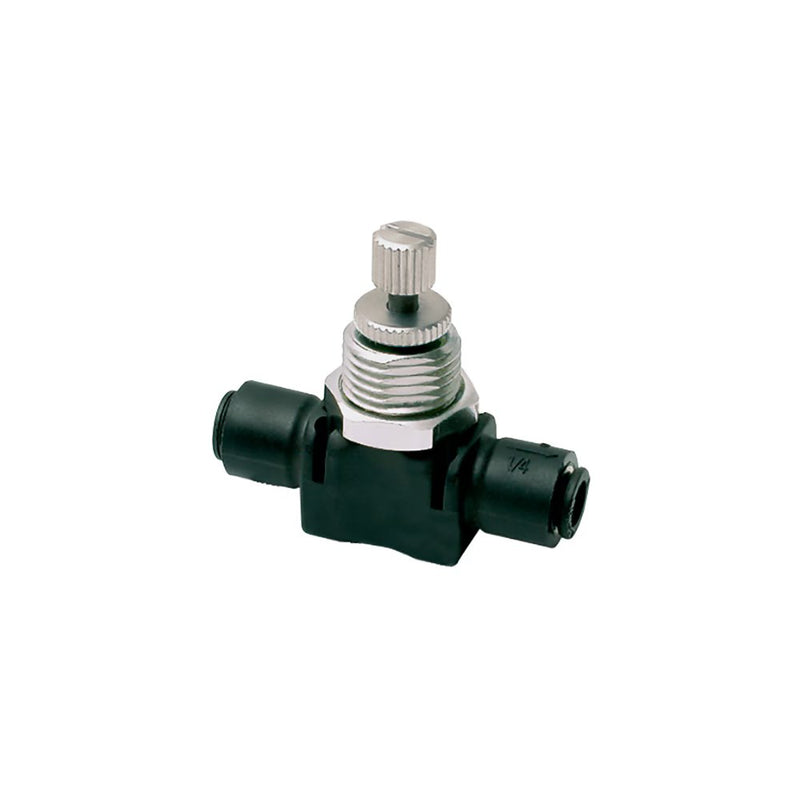

7776 04 00 by Parker | Legris Panel-Mountable In-Line One-Way Flow Regulator | 4mm Tube Size | 14mm Hex | Straight | Polymer | Pack of 10

Save $178.22

$445.55

$445.55 - $445.55

$445.55

$267.33

$267.33 - $267.33

$267.33

by Parker Hannifin
Flow Control Regulators:7776 Panel-Mountable In-Line One-Way Flow Regulator

Package Quantity: 10 Units

Specifications for Variant SKU: 7776 04 00 Parker \| 10 \|
Series:	7776 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	F1	H	H (max)	H1	H2	K	L	ØT	Kg
7776 04 00*	4 mm	14 mm	-	39.5 mm	43 mm	6.5 mm	11 mm	6 mm	36 mm	10.5 mm	.015 Kg
7776 06 00*	6 mm	22 mm	-	45.5 mm	49 mm	7.5 mm	13.5 mm	7 mm	51 mm	16.5 mm	.038 Kg
7776 08 00	8 mm	22 mm	11 mm	45.5 mm	54 mm	9 mm	13.5 mm	7 mm	58 mm	18.5 mm	.069 Kg
7776 10 00	10 mm	30 mm	14 mm	54 mm	62 mm	11.5 mm	13.5 mm	7 mm	73 mm	24.5 mm	.136 Kg
7776 12 00	12 mm	32 mm	14 mm	61 mm	71 mm	12.5 mm	15.5 mm	8 mm	85 mm	27.5 mm	.185 Kg

*Ultrafine adjustment
