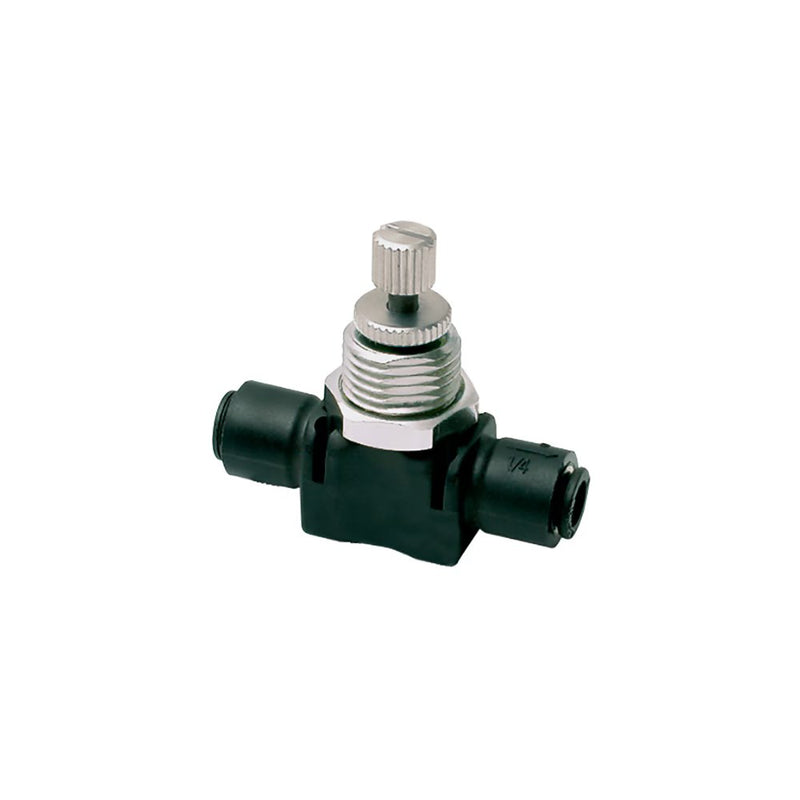

7776 06 00 by Parker | Legris Panel-Mountable In-Line One-Way Flow Regulator | 6mm Tube Size | 22mm Hex | Straight | Polymer | Pack of 5

Save $106.75

$266.88

$266.88 - $266.88

$266.88

$160.13

$160.13 - $160.13

$160.13

by Parker Hannifin
Flow Control Regulators:7776 Panel-Mountable In-Line One-Way Flow Regulator

Package Quantity: 5 Units

Specifications for Variant SKU: 7776 06 00 Parker \| 5 \|
Series:	7776 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	F1	H	H (max)	H1	H2	K	L	ØT	Kg
7776 04 00*	4 mm	14 mm	-	39.5 mm	43 mm	6.5 mm	11 mm	6 mm	36 mm	10.5 mm	.015 Kg
7776 06 00*	6 mm	22 mm	-	45.5 mm	49 mm	7.5 mm	13.5 mm	7 mm	51 mm	16.5 mm	.038 Kg
7776 08 00	8 mm	22 mm	11 mm	45.5 mm	54 mm	9 mm	13.5 mm	7 mm	58 mm	18.5 mm	.069 Kg
7776 10 00	10 mm	30 mm	14 mm	54 mm	62 mm	11.5 mm	13.5 mm	7 mm	73 mm	24.5 mm	.136 Kg
7776 12 00	12 mm	32 mm	14 mm	61 mm	71 mm	12.5 mm	15.5 mm	8 mm	85 mm	27.5 mm	.185 Kg

*Ultrafine adjustment

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
