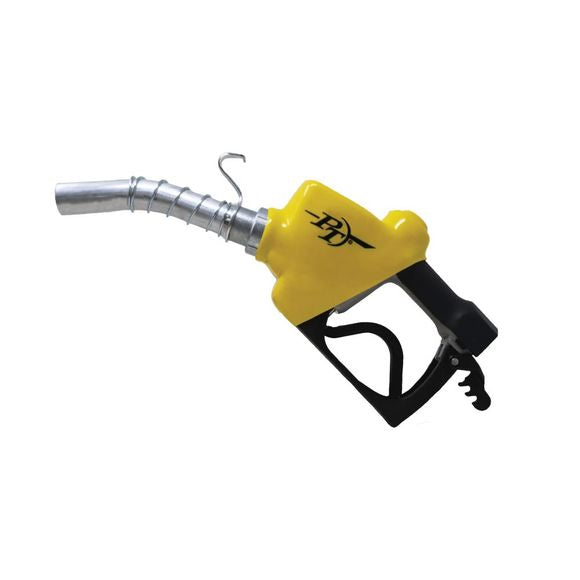

780057 by PT-Coupling | Farm and Consumer Automatic Nozzle | for use with Diesel | 1" NPT Inlet | 25 Flow Rate | 1-1/8" Spout Size

Save $82.11

$221.20

$221.20 - $221.20

$221.20

$139.09

$139.09 - $139.09

$139.09

PT Coupling
Farm and Consumer Automatic Nozzle

The F&C automatic nozzle is designed for use with small 12 volt and AC utility pumps, as well as larger Farm & Consumer pumps.

The hook is the toughest available - will always maintain its shape.

Made in the USA.

Specifications for Variant SKU: 780057 PT-Coupling

Overview:
The F&C automatic nozzle is designed for use with small 12 volt and AC utility pumps, as well as larger Farm & Consumer pumps. The hook is the toughest available - will always maintain its shape. PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
Heavy duty, strong and more secure hook makes it easy to hang the nozzle on the pump. Vinyl scuff guard Pure Teflon® stem packing eliminates leak Made in the USA
Safety Notes:
These nozzles are not for use with gravity flow tanks

Part Name	Item #	Spout Size	NPT Inlet	Flow Rate	Weight (LBS)
Farm and Consumer Nozzle - Unleaded	780045	13/16"	3/4"	14	2.5 lbs.
Farm and Consumer Nozzle - Leaded	780046	15/16"	3/4"	14	2.5 lbs.
Farm and Consumer Nozzle - Diesel	780057	1-1/8"	1"	25	3 lbs.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
