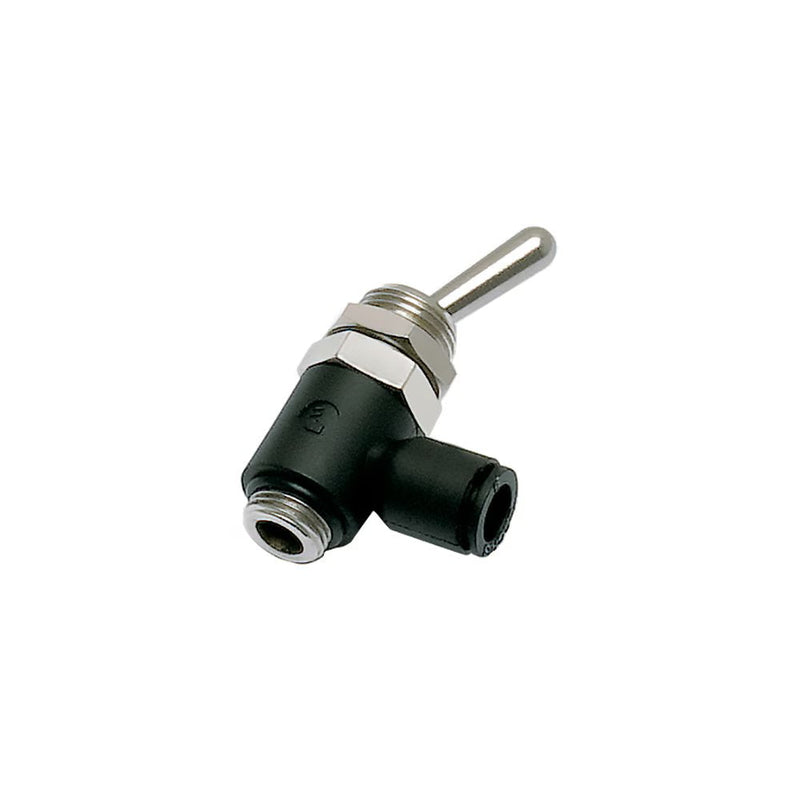

7802 08 13 by Parker | Legris 2/2 Manual Switch-Operated Valve | 8 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

7802 08 13 by Parker | Legris 2/2 Manual Switch-Operated Valve | 8 mm Tube Size x 1/4" Male BSPP Thread | 90° Elbow | Polymer

Save $15.42 Save $15.42
$110.34
$110.34 - $110.34
$110.34
$94.92
$94.92 - $94.92
$94.92

by Parker Hannifin
Manually-Operated Valves:7802 2/2 Manual Switch-Operated Valve, Male BSPP Thread
Specifications for Variant SKU: 7802 08 13 Parker
Series: 7802 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
    Model 0669: 0 to 16 bar
  • Working Temperature: -10°C to +80°C
    Model 0669: -5°C to +70°C
Advantages:
      Manual switch-operated valves:
  • 2 models:
      • - 3/2: opening, closing, venting
      - 2/2: opening, closing
  • Can be positioned through 360°
  • Manual switch-operated valves:
  • Uni-directional use ensures the downstream circuit is vented
  • Identification of the venting system by the color (red)
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Bolt: Manual switch-operated valve: nickel-plated brass with seal
    Sleeve valve: Nickel-plated brass
  • Body: Manual switch-operated valve: Technical polymer
    Sleeve valve: Nickel-plated brass
  • Seal: NBR
  • Lever: Nickel-plated brass
  • Locking nut: Nickel-plated brass
Part Number ØD C F F1 H L1 L2 Kg
7802 08 13 8 mm 1/4" 17 mm 14 mm 50.5 mm 9 mm 27 mm .052 Kg
