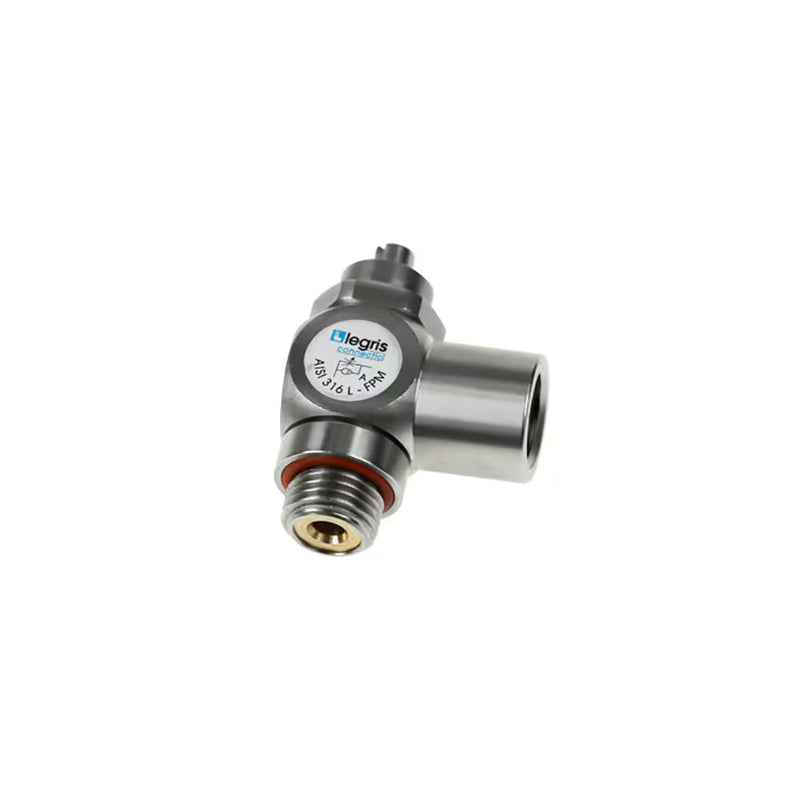

7812 13 13 by Parker | Legris Threaded Port Knobless Bi-Directional Flow Control | G1/4" Male BSPP Thread x G1/4" Female BSPP Thread | 1.89" Length | 90° Elbow | Stainless Steel | Pack of 2

Save $165.79

$414.48

$414.48 - $414.48

$414.48

$248.69

$248.69 - $248.69

$248.69

by Parker Hannifin
Stainless Steel Flow Controls:7810, 7812, Threaded Port Knobless Stainless Steel Flow Control - BSPP Metric

Package Quantity: 2 Units

Specifications for Variant SKU: 7812 13 13 Parker \| 2 \|
Series:	7812 Series
Shape (Orientation):	90° Elbow
Material(s):	Stainless Steel
Seal Material(s):	FKM
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Suitable for corrosive environments Excellent mechanical and chemical resistance 100% leak tested in production Smooth external surfaces to facilitate cleaning Suitable for food applications
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits Semi-Conductors
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Polyethylene 95FR Polyurethane 95 Durometer Shore A Semi-rigid Nylon FEP Fluoropolymer


Part Number Meter Out	Part Number Bi-Directional	C	E	E1	F	H	J	L	WT. KG.
7810 19 19	7812 19 19	M5X0.8	4 mm	4 mm	8 mm	24 mm	10 mm	11 mm	.027
7810 10 10	7812 10 10	G1/8"	5 mm	8 mm	13 mm	38 mm	15 mm	17 mm	.035
7810 13 13	7812 13 13	G1/4"	8 mm	12 mm	17 mm	40 mm	18 mm	24 mm	.048
7810 17 17	7812 17 17	G3/8"	7 mm	12 mm	20 mm	53 mm	22 mm	24 mm	.059
7810 21 21	7812 21 21	G1/2"	8 mm	15 mm	23 mm	69 mm	28 mm	31 mm	.076
