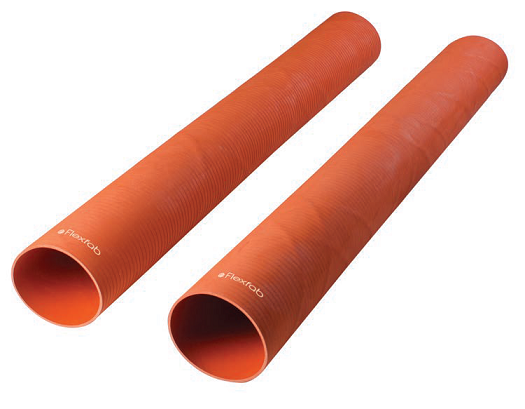

7851-350 FlexFab Series 7851 4-ply Meta-Aramid Reinforced Turbo Sleeve - 3.50" ID - 3.73" OD - 3ft

7851-350 by FlexFab | Series 7851 | 4-ply Meta-Aramid Reinforced Turbo Sleeve | 3.50" ID | 3.73" OD | 3ft Length

Save $35.12 Save $35.12
$122.92
$122.92 - $122.92
$122.92
$87.80
$87.80 - $87.80
$87.80

Flexfab Industrial Hose - Series 7851 - Meta-Aramid Reinforced Turbo Sleeves

Package Quantity: 3 FT

Specifications for Variant SKU: 7851-350 Flexfab
Series: Series 7851
Hose Color(s): Orange
Internal Diameter: 3.50in
Outer Diameter: 3.73in
Tubing Construction: Silicone
Cover Construction: Silicone
Overview:
  • Comes in 3' lengths
Construction:
  • 4-Ply Silicone Coated Fiberglass Fabric Reinforcement
Specifications:
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Wall thickness is .090"/.135"
Applications:
  • For connection between the turbocharger and the engine
  • Resists chemicals, steam, ozone, coolants, and aging conditions normally found in the engine environment
Part Number Inside Diameter Outside Diameter Burst Pressure(PSI) Maximum OperatingPressure - (PSI) Weight Clamp
7851-100 1.00" 1.23" 135 PSI 45 PSI 0.50 lbs./ft FLX2582-0012
7851-150 1.50" 1.73" 120 PSI 40 PSI 0.60 lbs./ft FLX2583-0150 or FLX2584-0212
7851-200 2.00" 2.23" 105 PSI 35 PSI 0.70 lbs./ft FLX2583-0200 or FLX2584-0262
7851-250 2.50" 2.73" 90 PSI 30 PSI 0.80 lbs./ft FLX2583-0250 or FLX2584-0312
7851-300 3.00" 3.23" 75 PSI 25 PSI 0.90 lbs./ft FLX2583-0300 or FLX2584-0362
7851-350 3.50" 3.73" 60 PSI 20 PSI 1.00 lbs./ft FLX2583-0350 or FLX2584-0412
7851-400 4.00" 4.23" 45 PSI 15 PSI 1.10 lbs./ft FLX2583-0400 or FLX2584-0462
7851-500 5.00" 5.23" 30 PSI 10 PSI 1.20 lbs./ft FLX2583-0500 or FLX2584-0562
7851-600 6.00" 6.23" 30 PSI 10 PSI 1.30 lbs./ft FLX2584-0662
*Specifications for reference only. Specific test data available on request.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
