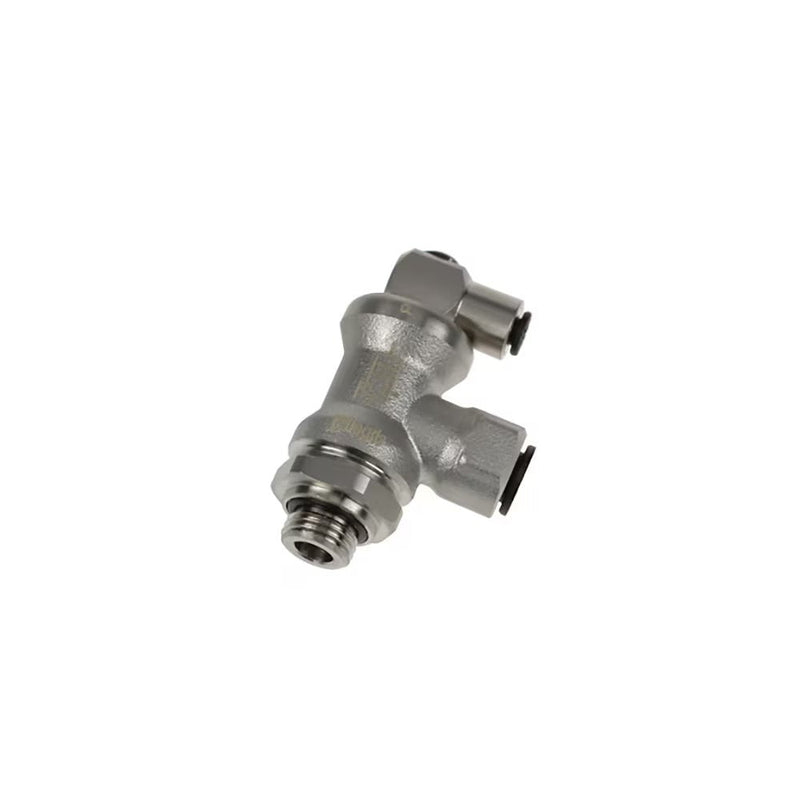

7880 08 13 by Parker | Legris Blocking Fitting | 8 mm Tube Size x 1/4" Male BSPP Thread | 21 mm Hex | 59.5 mm Length | Multi-Directional | Nickel-Plated Brass

Save $14.73

$202.42

$202.42 - $202.42

$202.42

$187.69

$187.69 - $187.69

$187.69

by Parker Hannifin
Blocking Fitting:7880 Blocking Fitting, Male BSPP Thread

Quantity

Specifications for Variant SKU: 7880 08 13 Parker
Series:	7880 Series
Shape (Orientation):	Multi-Directional
Material(s):	Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -20°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Mounted in pairs on a cylinder Compact size to fit into any configuration Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973) Can be rotated 360° during assembly Spark resistance, for welding applications
Regulations:	RoHS REACH PED B10d >110 millions of cycles
Component Materials:	Body: Nickel-plated brass Release buttons: Polymer Seals: NBR Gripping ring: Stainless Steel Adapter: Nickel-plated brass Silicone-free


Part Number	ØD	C	E	F	G	H	H1	H2	J	L	Kg
7880 06 10	6 mm	1/8"	5.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	28 mm	.127 Kg
7880 06 13	6 mm	1/4"	6.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	28 mm	.130 Kg
7880 08 13	8 mm	1/4"	6.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	28 mm	.124 Kg
7880 08 17	8 mm	3/8"	7.5 mm	21 mm	24 mm	53 mm	24.5 mm	21 mm	17 mm	28 mm	.127 Kg
7880 10 17	1 mm	3/8"	7.5 mm	24 mm	28 mm	58 mm	25 mm	25 mm	27 mm	35 mm	.210 Kg
7880 12 21	12 mm	1/2"	9 mm	24 mm	28 mm	58 mm	25 mm	25 mm	27 mm	37.5 mm	.220 Kg
