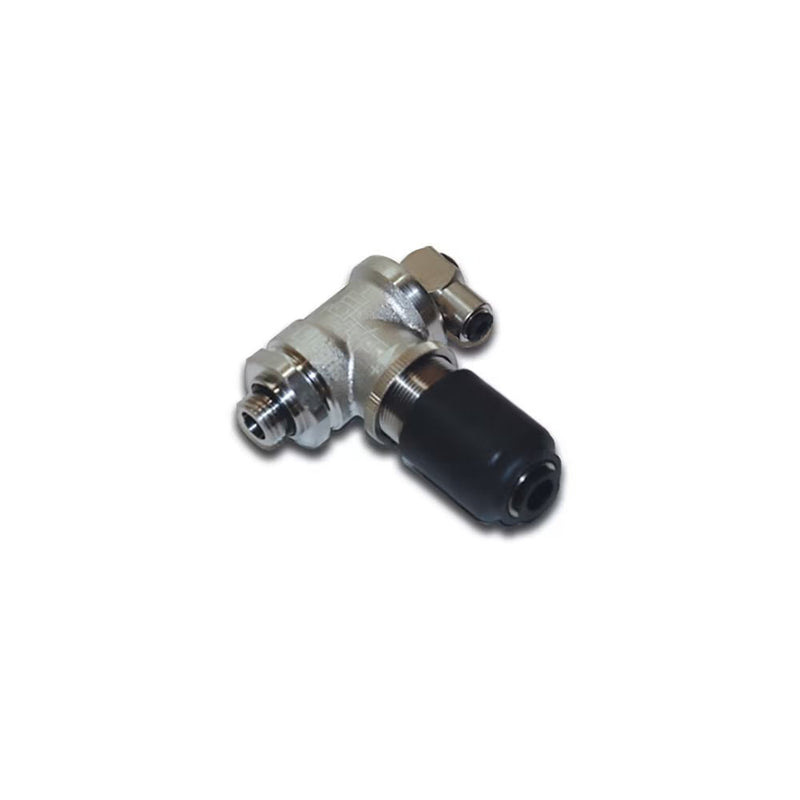

7883 06 10 by Parker | Legris Blocker/Flow Regulator | 6 mm Tube Size x 1/8" Male BSPP Thread | 64 mm Length | Multi-Directional | Nickel-Plated Brass

Name: 7883 06 10 by Parker | Legris Blocker/Flow Regulator | 6 mm Tube Size x 1/8" Male BSPP Thread | 64 mm Length | Multi-Directional | Nickel-Plated Brass
Brand: Parker Fluid Connections Division
SKU: 7883 06 10 Parker
Price: 171.52 USD
Availability: InStock

Save $13.45

$184.97

$184.97 - $184.97

$184.97

$171.52

$171.52 - $171.52

$171.52

by Parker Hannifin
Blocking Fitting:7883 Blocker/Flow Regulator, Exhaust, Male BSPP Thread

Quantity

Specifications for Variant SKU: 7883 06 10 Parker
Series:	7883 Series
Shape (Orientation):	Multi-Directional
Material(s):	Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar Working Temperature: -20°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Mounted in pairs on a cylinder Compact size to fit into any configuration Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973) Can be rotated 360° during assembly Spark resistance, for welding applications
Regulations:	RoHS REACH PED B10d >110 millions of cycles
Component Materials:	Body: Nickel-plated brass Release buttons: Polymer Seals: NBR Gripping ring: Stainless Steel Adapter: Nickel-plated brass Silicone-free


Part Number	ØD	C	G	H	H1	L	L (Max)	L1	Kg
7883 04 10	4 mm	1/8"	21.5 mm	53 mm	21 mm	46.5 mm	52 mm	12 mm	.166
7883 06 10	6 mm	1/8"	21.5 mm	53 mm	21 mm	46.5 mm	52 mm	12 mm	.163
7883 06 13	6 mm	1/8"	21.5 mm	53 mm	21 mm	46.5 mm	52 mm	12 mm	.166
7883 08 13	8 mm	1/4"	27 mm	57.5 mm	24.5 mm	54 mm	60 mm	14 mm	.252
7883 08 17	8 mm	3/8"	27 mm	57.5 mm	24.5 mm	54 mm	60 mm	14 mm	.254

Combination of blocking and flow regulation functions Working temperature: 0 to 70°C
