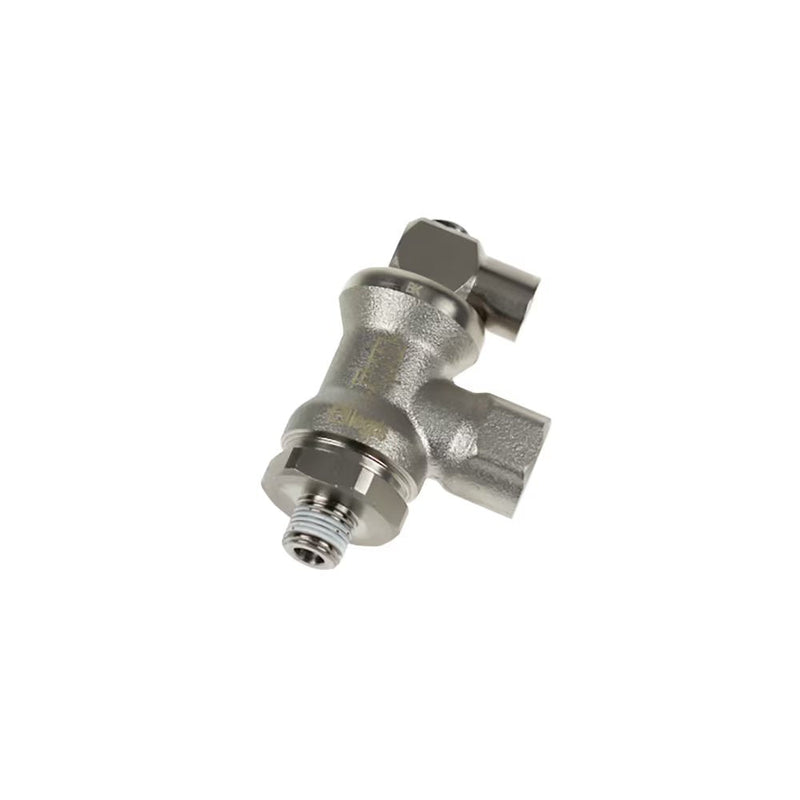

7886 21 21 by Parker | Legris Blocking Fitting | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 24 mm Hex | Multi-Directional | Nickel-Plated Brass

7886 21 21 by Parker | Legris Blocking Fitting | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 24 mm Hex | Multi-Directional | Nickel-Plated Brass

Save $79.79 Save $79.79
$199.48
$199.48 - $199.48
$199.48
$119.69
$119.69 - $119.69
$119.69

by Parker Hannifin
Blocking Fitting:7886 Blocking Fitting, Male/Female BSPT Thread
Specifications for Variant SKU: 7886 21 21 Parker
Series: 7886 Series
Shape (Orientation): Multi-Directional
Material(s): Nickel-Plated Brass, Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Spark Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -20°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
  • Mounted in pairs on a cylinder
  • Compact size to fit into any configuration
  • Proven endurance according to the requirements of DI 2006/42/EC (B10d = 10 000 000 cycles at a frequency of 1Hz, according to ISO 19973)
  • Can be rotated 360° during assembly
  • Spark resistance, for welding applications
Regulations:
  • RoHS
  • REACH
  • PED
  • B10d >110 millions of cycles
Component Materials:
  • Body: Nickel-plated brass
  • Release buttons: Polymer
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Adapter: Nickel-plated brass
  • Silicone-free
Part Number C1 C2 F G H H1 H2 J L Kg
7886 13 10 1/8" 1/4" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 26.5 mm .121 Kg
7886 13 13 1/4" 1/4" 21 mm 24 mm 51.5 mm 25 mm 20 mm 17 mm 26.5 mm .126 Kg
7886 17 17 3/8" 3/8" 24 mm 28 mm 57 mm 25 mm 24 mm 27 mm 34 mm .225 Kg
7886 21 21 1/2" 1/2" 24 mm 28 mm 57 mm 25 mm 24 mm 27 mm 40 mm .235 Kg

Pre-coated thread
