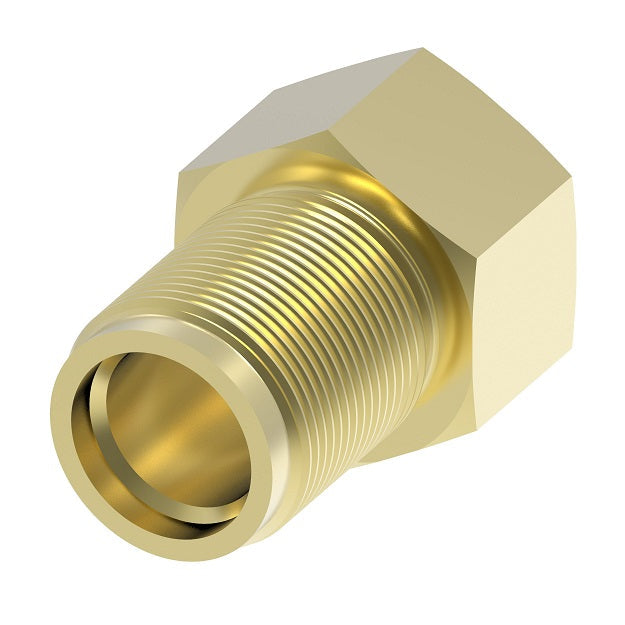

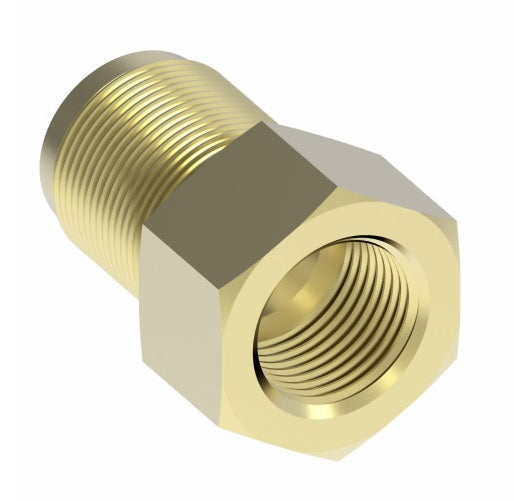

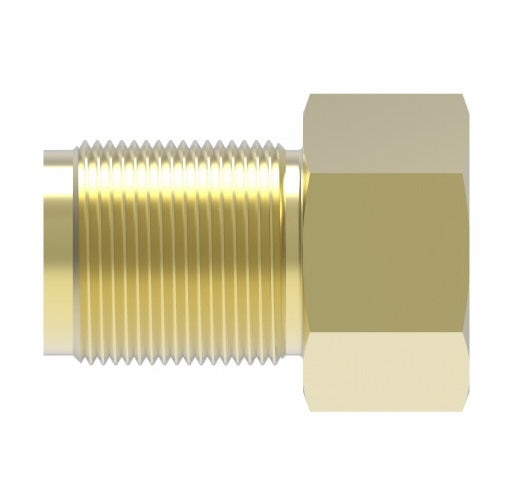

7911 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 3/16" (9/16-18) Inverted Male x 3/16" Inverted Female | Brass

7911 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 3/16" (9/16-18) Inverted Male x 3/16" Inverted Female | Brass

Name: 7911 by Danfoss | Hydraulic Brake Dual Master Cylinder Adapter | 3/16" (9/16-18) Inverted Male x 3/16" Inverted Female | Brass
Brand: Danfoss/Eaton
SKU: 7911 Danfoss
Price: 5.84 USD
Availability: InStock

$5.84 - $5.84

$5.84

$5.84 - $5.84

$5.84

Aeroquip® by Danfoss
Hydraulic Brake Dual Master Cylinder Adapter - Straight

Adapters can be used to adapt standard steel brake lines to the different size ports used in dual master cylinders.

Specifications for Variant SKU: 7911 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/16in Male Inverted Flare, 3/16in Female Inverted Flare
Material(s):	Brass

Note:
The tube O.D. is the outside diameter of the steel brake line. Thread size can be determined by measuring with a U.S. or Metric screw pitch gauge.

Brass Part Number	Inverted Male Thread	Inverted Female Thread
7911	3/16" (9/16-18)	3/16"
7913	3/16" (9/16-18)	3/16" (1/2-20)
7828	3/16"	1/4"
7818	1/4"	3/16"
7732*	7/16-20	1/4"
7908	1/4" (9/16-18)	1/4"
7917	1/4"	5/16" **
7817*	5/16"	3/16"
7909	5/16"	3/16"
7912	5/16"	3/16" (9/16-18)
7727*	5/16"	1/4"
7829	5/16"	1/4"
1074*	5/16"	5/16"
7771	3/8" NPTF	5/16"

** Seat may be used for 3/16", 1/4", 5/16" Tube Connection with 1/2-20 Thread.
* Seals On Hex Face (E)
