Aeroquip® by Danfoss

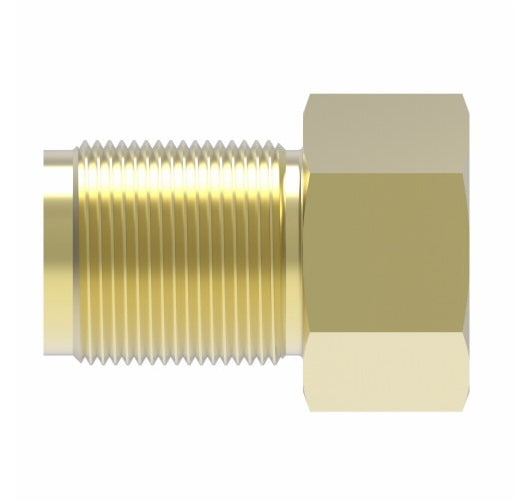

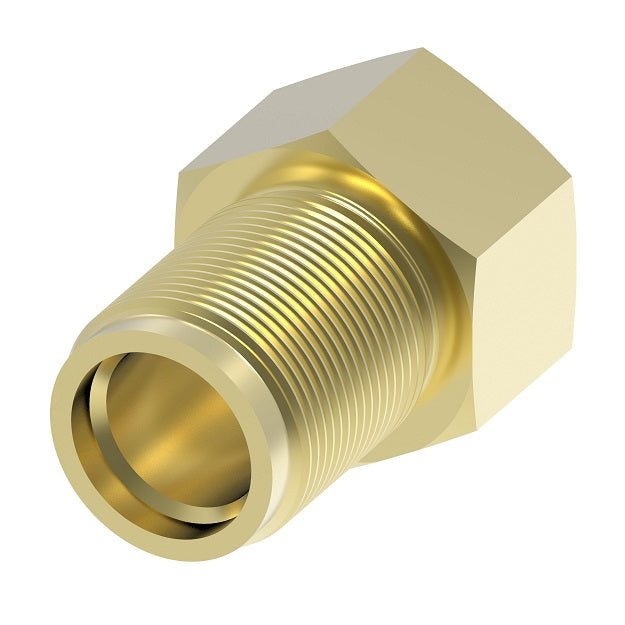

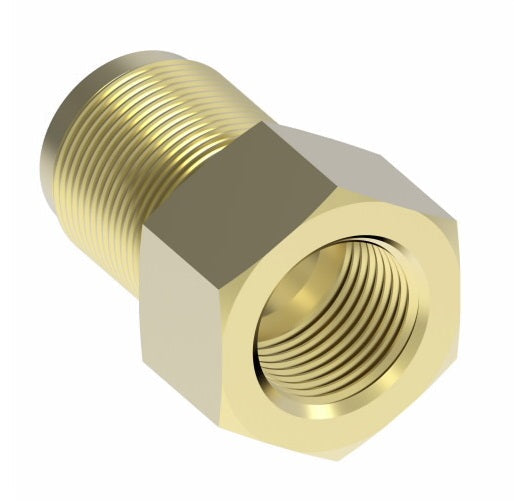

Hydraulic Brake Dual Master Cylinder Adapter - Straight

Adapters can be used to adapt standard steel brake lines to the different size ports used in dual master cylinders.
Specifications for Variant SKU: 7917 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male Inverted Flare, 5/16in Female Inverted Flare
Material(s): Brass
Note:
  • The tube O.D. is the outside diameter of the steel brake line. Thread size can be determined by measuring with a U.S. or Metric screw pitch gauge.
Brass
Part Number 		Inverted Male Thread Inverted Female Thread
7911 3/16" (9/16-18) 3/16"
7913 3/16" (9/16-18) 3/16" (1/2-20)
7828 3/16" 1/4"
7818 1/4" 3/16"
7732* 7/16-20 1/4"
7908 1/4" (9/16-18) 1/4"
7917 1/4" 5/16" **
7817* 5/16" 3/16"
7909 5/16" 3/16"
7912 5/16" 3/16" (9/16-18)
7727* 5/16" 1/4"
7829 5/16" 1/4"
1074* 5/16" 5/16"
7771 3/8" NPTF 5/16"

** Seat may be used for 3/16", 1/4", 5/16" Tube Connection with 1/2-20 Thread.
* Seals On Hex Face (E)
