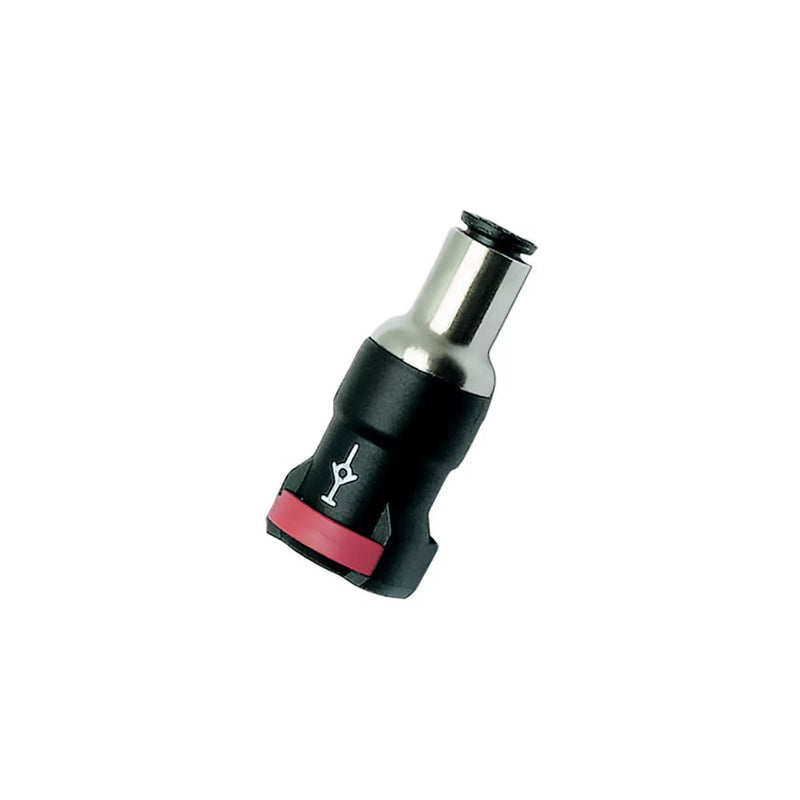

7926 05 06 by Parker | Legris Body with Push-In Connection | 5 mm Tube Size x 6 mm Tube Size | 44 mm Length | Straight | Polymer | Pack of 10 | Pack of 10

Save $191.82

$479.55

$479.55 - $479.55

$479.55

$287.73

$287.73 - $287.73

$287.73

by Parker Hannifin
Snap Fitting:7926 Body with Push-In Connection

Package Quantity: 10 Units

Specifications for Variant SKU: 7926 05 06 Parker \| 10 \|
Series:	7926 Series
Shape (Orientation):	Straight
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: -20°C to +80°C Flow Characteristics at 6 bar: DN 5 mm: 1000 NI/min / DN 7 mm: 1900 NI/min
Advantages:	Partial venting of systems for energy and time-saving during maintenance operations Protection of individuals by maintaining pressure if necessary Audible click indicates connection
Regulations:	RoHS PED REACH
Component Materials:	Body: Technical polymer Plug: Nickel-plated brass Seal: NBR Ring: Technical polymer


Part Number	Diameter Nominal (DN)	ØD	G	L	Kg
7926 05 06	5 mm	6 mm	18.5 mm	44 mm	.02 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
