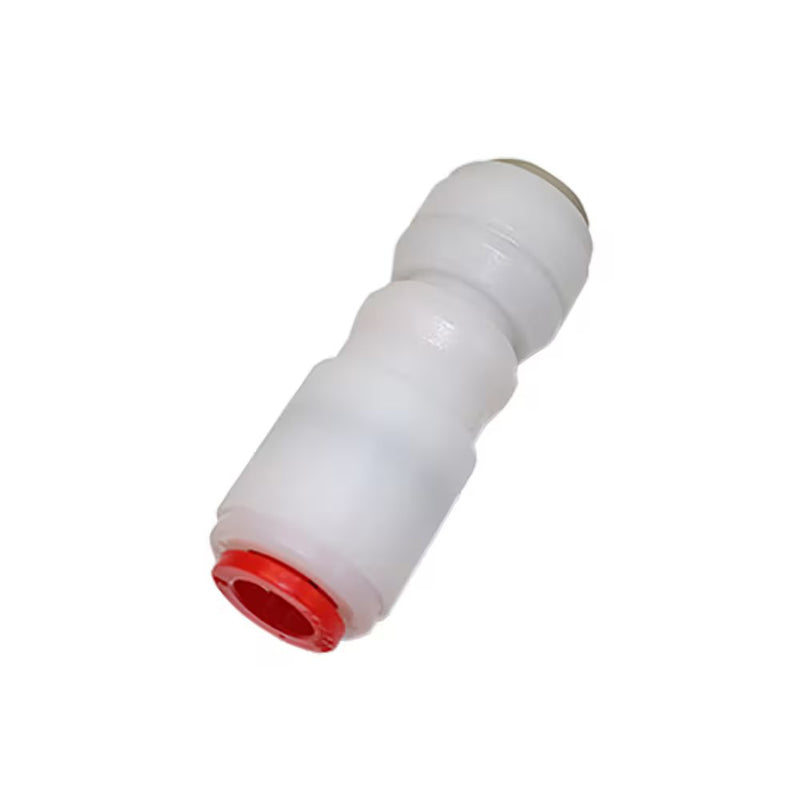

7992 08 00WP2 by Parker | Legris Single Non-Return Valve | 8 mm Tube Size | 48.5 mm Length | Straight | Acetal

Save $39.31

$98.28

$98.28 - $98.28

$98.28

$58.97

$58.97 - $58.97

$58.97

by Parker Hannifin
LIQUIfit® Non-Return Valves:7992 Single Non-Return Valve

Specifications for Variant SKU: 7992 08 00WP2 Parker
Series:	7992 Series
Shape (Orientation):	Straight
Material(s):	Acetal, Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: water, beverages, liquid foodstuffs Working Pressure:1 to 10 bar Working Temperature:.02 bar up to O.D. 3/8" .03 bar for O.D. 1/2"
Advantages:	Fully compatible for use with water, beverages, liquid foodstuffs and gas Excellent chemical compatibility Hygienic design with smooth surfaces
Regulations:	RoHS FDA: 21 CFR NSF 51 REACH
Component Materials:	Body: POM Seals: EPDM Release button: Technical polymer Teeth: Stainless Steel


Part Number	ØD	G	L	Kg
7992 06 00WP2	6 mm	15.5 mm	45.5 mm	.007 Kg
7992 08 00WP2	8 mm	17.5 mm	48.5 mm	.010 Kg
7992 10 00WP2	10 mm	20 mm	57.5 mm	.014 Kg
