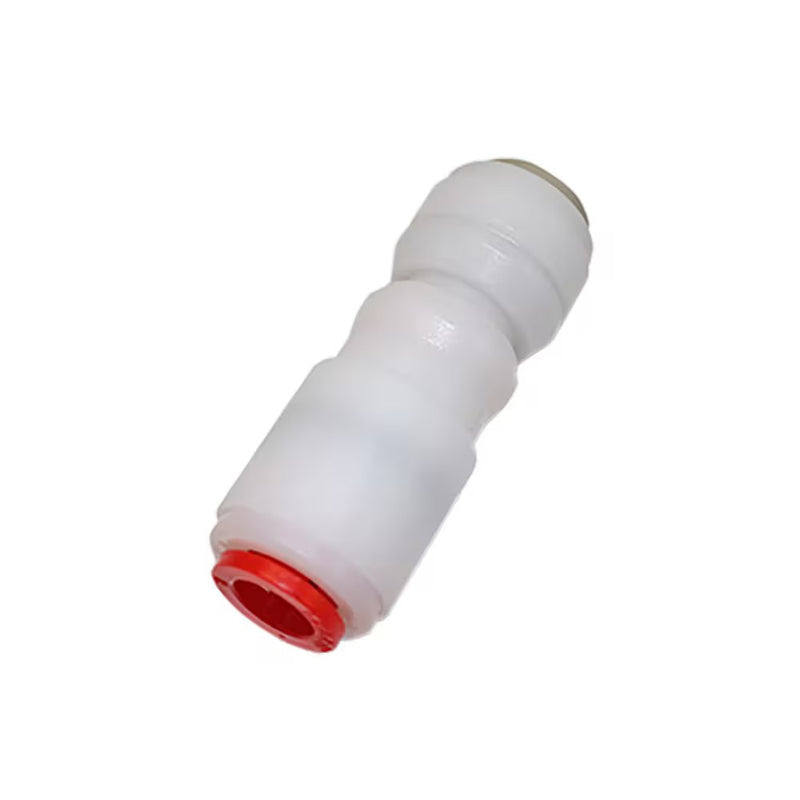

7992 10 00WP2 by Parker | Legris Single Non-Return Valve | 10 mm Tube Size | 57.5 mm Length | Straight | Acetal | Pack of 5

Save $8.57

$135.10

$135.10 - $135.10

$135.10

$126.53

$126.53 - $126.53

$126.53

by Parker Hannifin
LIQUIfit® Non-Return Valves:7992 Single Non-Return Valve

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 7992 10 00WP2 Parker \| 5 \|
Series:	7992 Series
Shape (Orientation):	Straight
Material(s):	Acetal, Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: water, beverages, liquid foodstuffs Working Pressure:1 to 10 bar Working Temperature:.02 bar up to O.D. 3/8" .03 bar for O.D. 1/2"
Advantages:	Fully compatible for use with water, beverages, liquid foodstuffs and gas Excellent chemical compatibility Hygienic design with smooth surfaces
Regulations:	RoHS FDA: 21 CFR NSF 51 REACH
Component Materials:	Body: POM Seals: EPDM Release button: Technical polymer Teeth: Stainless Steel


Part Number	ØD	G	L	Kg
7992 06 00WP2	6 mm	15.5 mm	45.5 mm	.007 Kg
7992 08 00WP2	8 mm	17.5 mm	48.5 mm	.010 Kg
7992 10 00WP2	10 mm	20 mm	57.5 mm	.014 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
