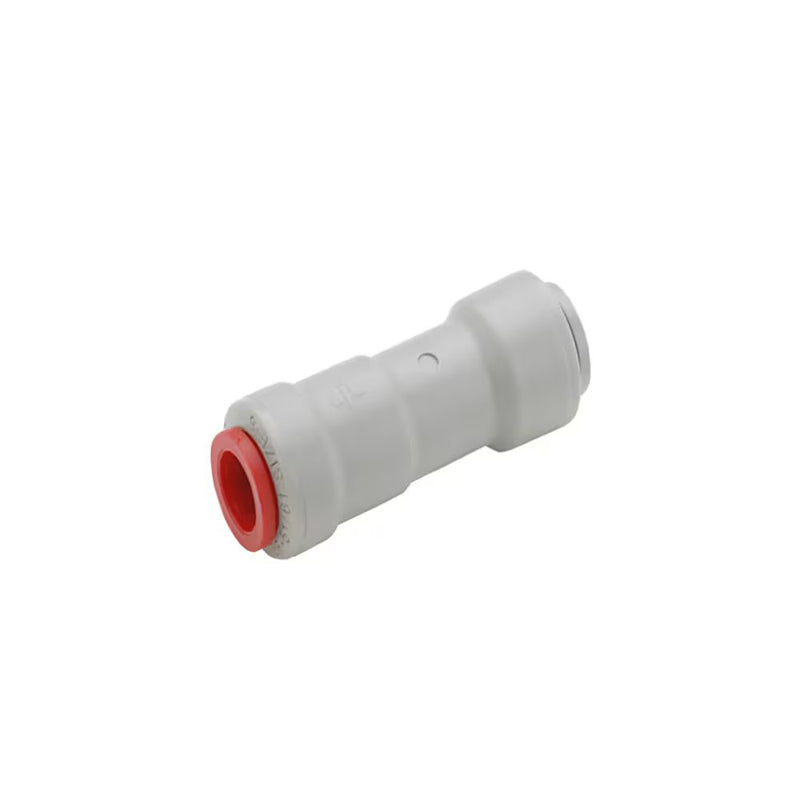

7992 56 00WP2 by Parker | Legris Single Non-Return Valve | 1/4" Tube Size | 51mm Length | Straight | Acetal | Pack of 5

Save $42.27

$105.67

$105.67 - $105.67

$105.67

$63.40

$63.40 - $63.40

$63.40

by Parker Hannifin
LIQUIfit® Non-Return Valves:Single Non-Return Valve

Package Quantity: 5 Units

Specifications for Variant SKU: 7992 56 00WP2 Parker \| 5 \|
Series:	7992 Series
Shape (Orientation):	Straight
Material(s):	Acetal, Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free

Technical Characteristics:	Compatible Fluids: water, beverages, liquid foodstuffs Working Pressure:1 to 10 bar Working Temperature:.02 bar up to O.D. 3/8" .03 bar for O.D. 1/2"
Advantages:	Fully compatible for use with water, beverages, liquid foodstuffs and gas Excellent chemical compatibility Hygienic design with smooth surfaces
Regulations:	RoHS FDA: 21 CFR NSF 51 REACH
Component Materials:	Body: POM Seals: EPDM Release button: Technical polymer Teeth: Stainless Steel


Part Number	ØD	G	L	Kg
7992 56 00WP2	1/4"	17 mm	51 mm	.008 Kg
7992 60 00WP2	3/8"	20 mm	55 mm	.011 Kg
