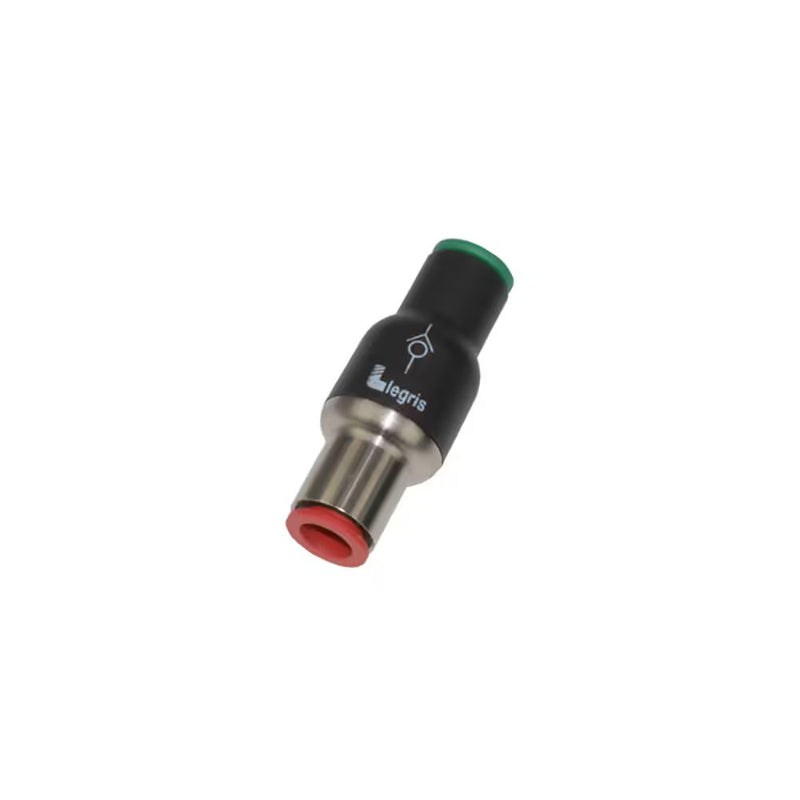

7996 56 00 by Parker | Legris In-Line Equal Non-Return Valve | 1/4" Tube Size | 1.61" Length | Straight | Polymer

7996 56 00 by Parker | Legris In-Line Equal Non-Return Valve | 1/4" Tube Size | 1.61" Length | Straight | Polymer | Pack of 10

Save $182.13 Save $182.13
$455.33
$455.33 - $455.33
$455.33
$273.20
$273.20 - $273.20
$273.20

by Parker Hannifin
In-Line Check Valves:7996 - in-line check valve tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 7996 56 00 Parker | 10 |
Series: 7996 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Acetal, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Glass-reinforced nylon 6.6/nickel-plated brass body
  • VC – Acetal body
  • Stainless steel gripping ring
  • Nickel-plated brass threads
  • Nitrile O-ring
  • EPDM O-ring (VC)
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range
  • 14.5 to 145 psi (1 to 10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
    VC – 34° to 150° F (1° to 65° C)
Compatible Fluids
  • 7 psi (0.48 bar)
    VC – 1/3 psi (0.02 bar)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD G L Oz
7996 56 00 1/4" .63" 1.61" .51 Oz
7996 60 00 3/8" .91" 2.50" .63 Oz
